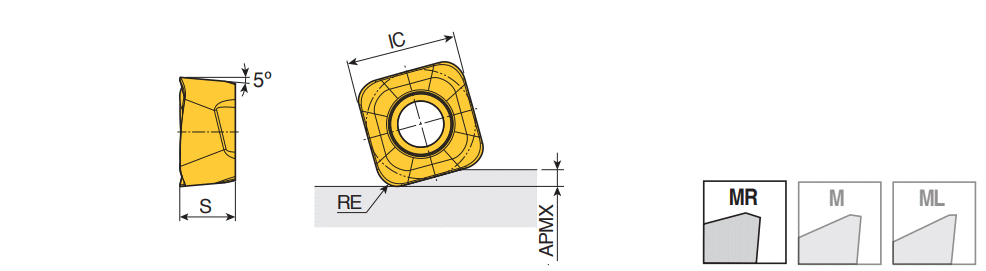

SBMT 13-MR : Positive square inserts with 4 cutting edges for high feed milling in max. depth of cut ap 2,0 mm

Designation	IC	S	APMX	RE	fz (max)	fz (min)	ap (min)	ap (max)	S1	SF	CEDC	Insert	SC	l	Rg		Pocket		ClssID	CB	GRDMFG	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SBMT 130625R-MR	13.05	6.65	2.00	2.50	2.000	0.420	0.50	2.00	13.00~	M10 ~	4~	CF-SB13 ~	S ~	13.05~	4.0~	0.01~	SBMT 13 ~	MR ~	71DD68D829217 ~	MR ~	TT2510 ~	6158702		2		TT9080 TT2510
