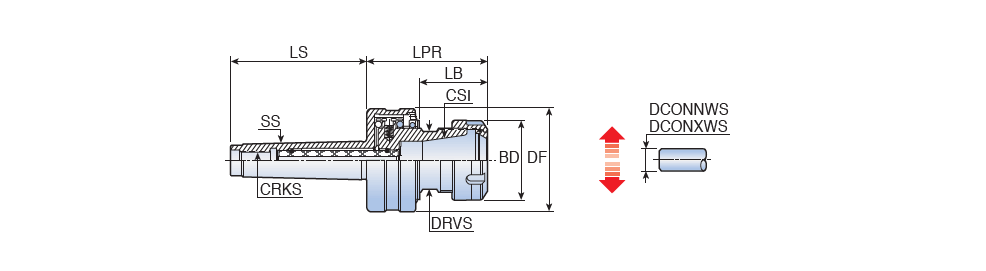

GFI MT-ER (Reamer Chuck) : Floating reamer DIN 6499 ER collet chucks with Morse taper shanks

Related holder for : EROH 32-11.0

Designation	SS	CSI	DCONNWS	DCONXWS	BD	DF	LPR	LB	LS	RFl	CRKS	DRVS		ClssID	LTA	GICAT	GIREM	giic	GICODE
GFI MT 3 ER32	3	ER32	2.00	20.00	50.00	65.00	81.90	45.9	81.00	1.6	M12	36.0	1.46	71EAD3871D313 ~	63.93~	4603663		0

Max. 2,000RPM
