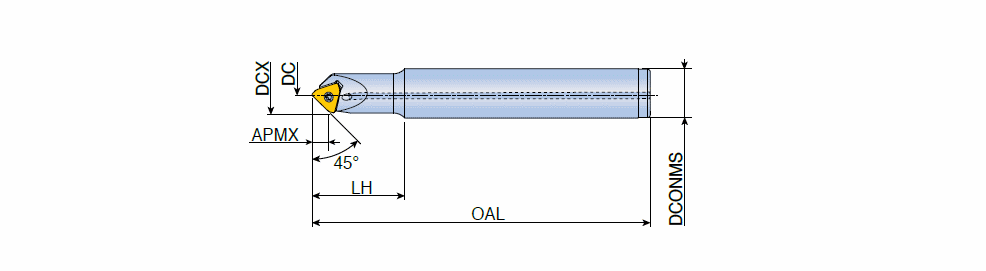

3P-TCF 45-10 : Small diameter 45° chamfering end mills with 1 no. of 3PK(H)T 10 insert

Designation	Tool sty	CICT	DCX	DC	DCONMS	OAL	LH	APMX	S1	S5	Shank		R/L	Rd	Arbor	PD	Insert	ClssID	MIID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic	GICODE
3P-TCF45-D2-16-10-L110	ENDMILL ~	1	13.30	2.00	16.00	110.00	30.0	4.70	10.00~	~	C ~	0.14	~	0.00~	~	~	MR-3P10 ~	71E01A05D27A8 ~	3PHT 100404R-M	ZYL ~	01 ~	62.15~	6218836		0
