TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills - Step down machining

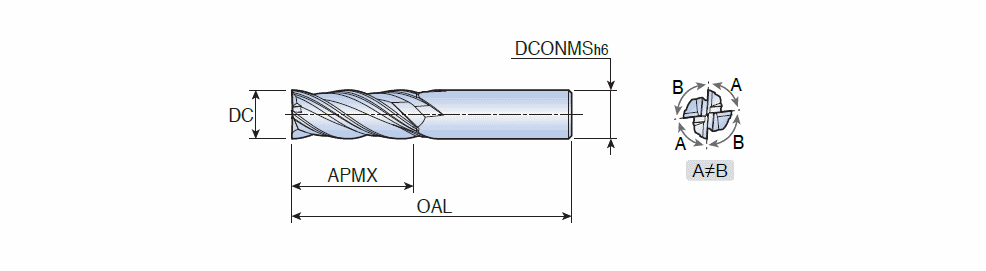

UHP 4 : 4 flute, flat type solid carbide end mills with different helix and unequal spacing for machining of steels including alloy,carbon, mold as well as stainless

Designation	Tool sty	DC	OAL	APMX	DCONMS	H.A	Shank	Rd	fz (min)	fz (max)	Flute	ClssID	CCTMS	CCFMS	LTA	GICAT	giic	Grade
UHP 4020X6X42	SOLID TYPE ~	2.00	42.00	6.00	6.00	0.0~	C ~	0.00~	0.010	0.015	4~	71E01A05D27A8 ~	ZYL ~	01 ~	16.50~	6237469	1	TT5520
UHP 4030X10X57	SOLID TYPE ~	3.00	57.00	10.00	6.00	0.0~	C ~	0.00~	0.010	0.020	4~	71E01A05D27A8 ~	ZYL ~	01 ~	21.00~	6237470	1	TT5520
UHP 4040X12X57	SOLID TYPE ~	4.00	57.00	12.00	6.00	0.0~	C ~	0.00~	0.010	0.035	4~	71E01A05D27A8 ~	ZYL ~	01 ~	21.00~	6237471	1	TT5520
UHP 4040X20X70	SOLID TYPE ~	4.00	70.00	20.00	6.00	0.0~	C ~	0.00~	0.010	0.025	4~	71E01A05D27A8 ~	ZYL ~	01 ~	34.00~	6237472	1	TT5520
UHP 4050X14X57	SOLID TYPE ~	5.00	57.00	14.00	6.00	0.0~	C ~	0.00~	0.015	0.040	4~	71E01A05D27A8 ~	ZYL ~	01 ~	21.00~	6237473	1	TT5520
UHP 4060X16X57	SOLID TYPE ~	6.00	57.00	16.00	6.00	0.0~	C ~	0.00~	0.020	0.060	4~	71E01A05D27A8 ~	ZYL ~	01 ~	21.00~	6237474	1	TT5520
UHP 4060X25X80	SOLID TYPE ~	6.00	80.00	25.00	6.00	0.0~	C ~	0.00~	0.020	0.050	4~	71E01A05D27A8 ~	ZYL ~	01 ~	44.00~	6237475	1	TT5520
UHP 4070X20X63	SOLID TYPE ~	7.00	63.00	20.00	8.00	0.0~	C ~	0.00~	0.020	0.070	4~	71E01A05D27A8 ~	ZYL ~	01 ~	29.00~	6237476	1	TT5520
UHP 4080X20X63	SOLID TYPE ~	8.00	63.00	20.00	8.00	0.0~	C ~	0.00~	0.020	0.080	4~	71E01A05D27A8 ~	ZYL ~	01 ~	27.00~	6237477	1	TT5520
UHP 4080X35X90	SOLID TYPE ~	8.00	90.00	35.00	8.00	0.0~	C ~	0.00~	0.020	0.060	4~	71E01A05D27A8 ~	ZYL ~	01 ~	54.00~	6237478	1	TT5520
UHP 4090X25X72	SOLID TYPE ~	9.00	72.00	25.00	10.00	0.0~	C ~	0.00~	0.025	0.090	4~	71E01A05D27A8 ~	ZYL ~	01 ~	34.00~	6237479	1	TT5520
UHP 4100X25X72	SOLID TYPE ~	10.00	72.00	25.00	10.00	0.0~	C ~	0.00~	0.025	0.100	4~	71E01A05D27A8 ~	ZYL ~	01 ~	32.00~	6237480	1	TT5520
UHP 4100X45X100	SOLID TYPE ~	10.00	100.00	45.00	10.00	0.0~	C ~	0.00~	0.025	0.080	4~	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6237481	1	TT5520
UHP 4110X30X83	SOLID TYPE ~	11.00	83.00	30.00	12.00	0.0~	C ~	0.00~	0.030	0.110	4~	71E01A05D27A8 ~	ZYL ~	01 ~	41.00~	6237482	1	TT5520
UHP 4120X30X83	SOLID TYPE ~	12.00	83.00	30.00	12.00	0.0~	C ~	0.00~	0.030	0.130	4~	71E01A05D27A8 ~	ZYL ~	01 ~	38.00~	6237483	1	TT5520
UHP 4120X55X110	SOLID TYPE ~	12.00	110.00	55.00	12.00	0.0~	C ~	0.00~	0.030	0.100	4~	71E01A05D27A8 ~	ZYL ~	01 ~	65.00~	6237484	1	TT5520
UHP 4140X40X92	SOLID TYPE ~	14.00	92.00	40.00	16.00	0.0~	C ~	0.00~	0.030	0.120	4~	71E01A05D27A8 ~	ZYL ~	01 ~	49.80~	6237485	1	TT5520
UHP 4160X40X92	SOLID TYPE ~	16.00	92.00	40.00	16.00	0.0~	C ~	0.00~	0.040	0.140	4~	71E01A05D27A8 ~	ZYL ~	01 ~	46.00~	6237486	1	TT5520
UHP 4160X70X125	SOLID TYPE ~	16.00	125.00	70.00	16.00	0.0~	C ~	0.00~	0.040	0.100	4~	71E01A05D27A8 ~	ZYL ~	01 ~	77.00~	6237487	1	TT5520
UHP 4180X45X110	SOLID TYPE ~	18.00	110.00	45.00	20.00	0.0~	C ~	0.00~	0.040	0.140	4~	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6237488	1	TT5520
UHP 4200X45X110	SOLID TYPE ~	20.00	110.00	45.00	20.00	0.0~	C ~	0.00~	0.050	0.140	4~	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6237489	1	TT5520
UHP 4200X75X150	SOLID TYPE ~	20.00	150.00	75.00	20.00	0.0~	C ~	0.00~	0.050	0.120	4~	71E01A05D27A8 ~	ZYL ~	01 ~	100.00~	6237490	1	TT5520
UHP 4250X65X140	SOLID TYPE ~	25.00	140.00	65.00	25.00	0.0~	C ~	0.00~	0.060	0.140	4~	71E01A05D27A8 ~	ZYL ~	01 ~	84.00~	6237491	1	TT5520
