TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills - Profiling

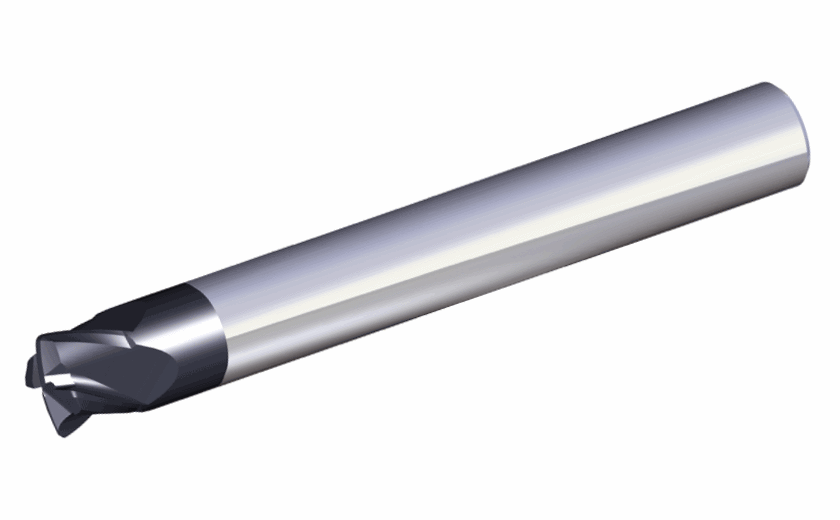

SCSL : Solid carbide lens shape endmills with 4, 6 flute for 5-axis profiling & semi-finishing & finishing applications

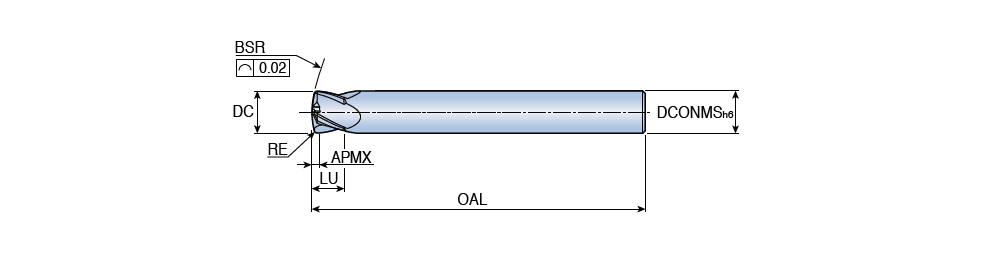

Designation	Tool sty	DC	NOF	BSR	RE	APMX	LU	DCONMS	OAL	H.A	Shank	Rd	fz (min)	fz (max)	Flute	ClssID	CCTMS	CCFMS	LTA	GICAT	giic	Grade
SCSL 4080R016X05	SOLID TYPE ~	8.00	4	16.00	0.75	1.10	5.0	8.00	63.00	0.0~	C ~	0.00~	0.020	0.080	4~	71E01A05D27A8 ~	ZYL ~	01 ~	27.00~	6242695	1	TT5515
SCSL 6100R020X07	SOLID TYPE ~	10.00	6	20.00	1.00	1.40	7.0	10.00	72.00	0.0~	C ~	0.00~	0.030	0.090	6~	71E01A05D27A8 ~	ZYL ~	01 ~	32.00~	6242698	1	TT5515
SCSL 6120R025X09	SOLID TYPE ~	12.00	6	25.00	1.00	1.50	9.0	12.00	83.00	0.0~	C ~	0.00~	0.030	0.100	6~	71E01A05D27A8 ~	ZYL ~	01 ~	38.00~	6242697	1	TT5515

BSR : Wiper edge radius
