TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills - Profiling

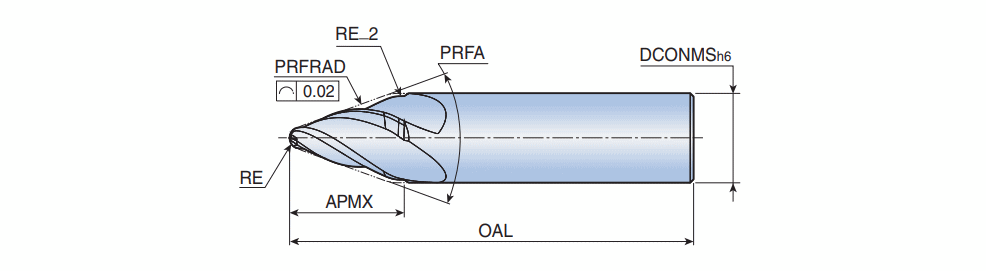

SCST : Solid carbide tapered oval shape endmills with 4 flute for 5-axis profiling & semi-finishing & finishing applications

Designation	Tool sty	PRFRAD	RE	RE_2	APMX	TFBA	DCONMS	OAL	H.A	Shank	Rd	fz (min)	fz (max)	Flute	ClssID	CCTMS	CCFMS	LTA	GICAT	giic	Grade
SCST 4080R250A40X10	SOLID TYPE ~	250.00	1.00	4.00	10.00	40.00	8.00	63.00	0.0~	C ~	0.00~	0.020	0.080	4~	71E01A05D27A8 ~	ZYL ~	01 ~	27.00~	6242702	1	TT5515
SCST 4100R250A40X11	SOLID TYPE ~	250.00	2.00	5.00	11.00	40.00	10.00	72.00	0.0~	C ~	0.00~	0.030	0.090	4~	71E01A05D27A8 ~	ZYL ~	01 ~	32.00~	6242703	1	TT5515
SCST 4120R250A40X12	SOLID TYPE ~	250.00	3.00	6.00	12.00	40.00	12.00	83.00	0.0~	C ~	0.00~	0.030	0.100	4~	71E01A05D27A8 ~	ZYL ~	01 ~	38.00~	6242704	1	TT5515

PRFRAD : Profile radius
