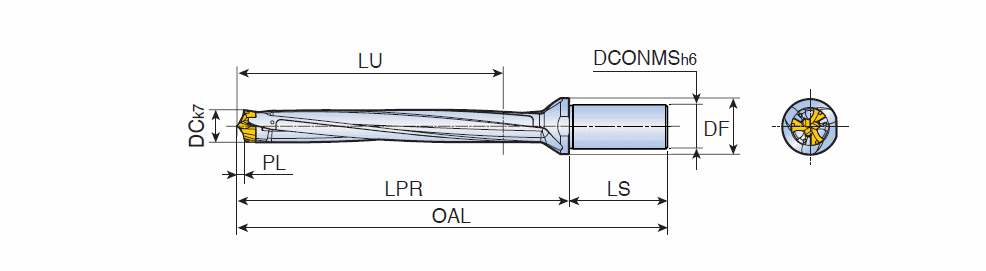

3ED-8XD (Cylindrical Shank) : Head changeable 3 flute drills with cylindrical shank (5xD)and coolant holes

Drilling depth: 8xdiameter

Designation	Tool sty	DCN	DCX	DCONMS	DF	LU	LPR	LS	OAL	PL	SSC		MIID	ClssID	Machines	Zeff	Min Tol	Max Tol	Shank	CICT	DC	L/D	CCFMS	CCTMS	LTA	GICAT
3ED 120-124-16T0-8D	HEAD TYPE ~	12.00	12.40	16.00	20.00	100.0	120.70	48.0	168.70	2.74	12	Y ~	3ED-12-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	12.00~	0.00~	11 ~	ZYL ~	117.96~	6247274
3ED 125-129-16T0-8D	HEAD TYPE ~	12.50	12.90	16.00	20.00	104.0	125.00	48.0	173.00	2.76	12	Y ~	3ED-12-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	12.00~	0.00~	11 ~	ZYL ~	122.24~	6250712
3ED 130-134-16T0-8D	HEAD TYPE ~	13.00	13.40	16.00	20.00	108.0	129.80	48.0	177.80	2.91	13	Y ~	3ED-13-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	13.00~	0.00~	11 ~	ZYL ~	126.89~	6247275
3ED 135-139-16T0-8D	HEAD TYPE ~	13.50	13.90	16.00	20.00	112.0	134.10	48.0	182.10	2.93	13	Y ~	3ED-13-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	13.00~	0.00~	11 ~	ZYL ~	131.17~	6247277
3ED 140-144-16T0-8D	HEAD TYPE ~	14.00	14.40	16.00	20.00	116.0	138.90	48.0	186.90	3.17	14	Y ~	3ED-14-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	14.00~	0.00~	11 ~	ZYL ~	135.73~	6245058
3ED 145-149-16T0-8D	HEAD TYPE ~	14.50	14.90	16.00	20.00	120.0	143.20	48.0	191.20	3.19	14	Y ~	3ED-14-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	14.00~	0.00~	11 ~	ZYL ~	140.01~	6245060
3ED 150-159-20T0-8D	HEAD TYPE ~	15.00	15.90	20.00	25.00	124.0	148.90	50.0	198.90	3.31	15	Y ~	3ED-15-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	15.00~	0.00~	11 ~	ZYL ~	145.59~	6245062
3ED 160-169-20T0-8D	HEAD TYPE ~	16.00	16.90	20.00	25.00	132.0	159.00	50.0	209.00	3.70	16	Y ~	3ED-16-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	16.00~	0.00~	11 ~	ZYL ~	155.30~	6321050
3ED 170-179-20T0-8D	HEAD TYPE ~	17.00	17.90	20.00	25.00	140.0	169.00	50.0	219.00	3.88	17	Y ~	3ED-17-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	17.00~	0.00~	11 ~	ZYL ~	165.12~	6245065
3ED 180-189-25T0-8D	HEAD TYPE ~	18.00	18.90	25.00	32.00	148.0	180.10	56.0	236.10	4.07	18	Y ~	3ED-18-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	18.00~	0.00~	11 ~	ZYL ~	176.03~	6245067
3ED 190-199-25T0-8D	HEAD TYPE ~	19.00	19.90	25.00	32.00	156.0	189.70	56.0	245.70	4.26	19	Y ~	3ED-19-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	19.00~	0.00~	11 ~	ZYL ~	185.44~	6245069
3ED 200-209-25T0-8D	HEAD TYPE ~	20.00	20.90	25.00	32.00	164.0	199.30	56.0	255.30	4.44	20	Y ~	3ED-20-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	20.00~	0.00~	11 ~	ZYL ~	194.86~	6214357
3ED 210-219-25T0-8D	HEAD TYPE ~	21.00	21.90	25.00	32.00	172.0	208.80	56.0	264.80	4.62	21	Y ~	3ED-21-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	21.00~	0.00~	11 ~	ZYL ~	204.18~	6245072
3ED 220-229-25T0-8D	HEAD TYPE ~	22.00	22.90	25.00	32.00	180.0	218.40	56.0	274.40	4.78	22	Y ~	3ED-22-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	22.00~	0.00~	11 ~	ZYL ~	213.62~	6245074
3ED 230-239-32T0-8D	HEAD TYPE ~	23.00	23.90	32.00	42.00	188.0	227.80	60.0	287.80	5.02	23	Y ~	3ED-23-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	23.00~	0.00~	11 ~	ZYL ~	222.78~	6245076
3ED 240-249-32T0-8D	HEAD TYPE ~	24.00	24.90	32.00	42.00	196.0	237.40	60.0	297.40	5.18	24	Y ~	3ED-24-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	24.00~	0.00~	11 ~	ZYL ~	232.22~	6245078
3ED 250-259-32T0-8D	HEAD TYPE ~	25.00	25.90	32.00	42.00	204.0	247.00	60.0	307.00	5.29	25	Y ~	3ED-25-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	25.00~	0.00~	11 ~	ZYL ~	241.71~	6245080
