TEBN-06CH : CERAMICSFEED end mills with Ceramic inserts four cutting edges for high speed machining of super alloys

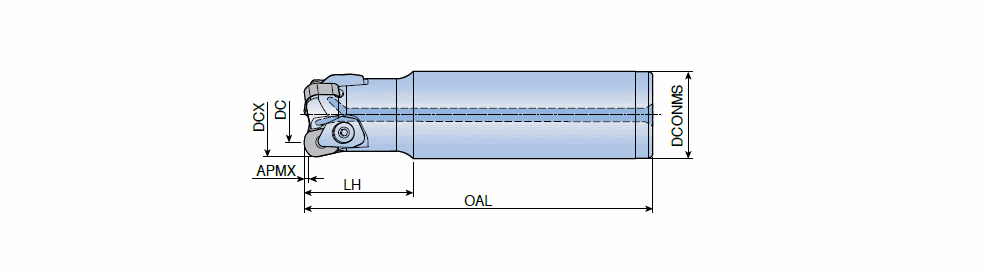

Designation	Tool sty	DCX	CICT	DC	DCONMS	OAL	LH	APMX	Air hole	S1	K	Shank	Rd	e	PD		Insert	Pocket	ClssID	MIID		CCTMS	CCFMS	LTA	GICAT
TEBN 216-16-06CH-L80	ENDMILL ~	16.00	2	8.60	16.00	80.00	25.0	1.00	X	6.00~	1.0~	C ~	0.50~	~	C ~	0.11	CSF-BN06 ~	BNGX06 ~	71E01A05D27A8 ~	BNGX 0603 CH-E04	Air hole ~	ZYL ~	01 ~	32.00~	6238451
TEBN 320-20-06CH-L80	ENDMILL ~	20.00	3	12.50	20.00	80.00	25.0	1.00	O	6.00~	1.0~	C ~	0.50~	~	RC ~	0.17	CSF-BN06 ~	BNGX06 ~	71E01A05D27A8 ~	BNGX 0603 CH-E04	Air hole ~	ZYL ~	01 ~	30.00~	6238452
TEBN 425-25-06CH-L100	ENDMILL ~	25.00	4	17.40	25.00	100.00	40.0	1.00	O	6.00~	1.0~	C ~	0.40~	~	C ~	0.30	CSF-BN06 ~	BNGX06 ~	71E01A05D27A8 ~	BNGX 0603 CH-E04	Air hole ~	ZYL ~	01 ~	44.00~	6247540
TEBN 532-32-06CH-L120	ENDMILL ~	32.00	5	24.30	32.00	120.00	40.0	1.00	O	6.00~	1.0~	C ~	0.35~	~	C ~	0.65	CSF-BN06 ~	BNGX06 ~	71E01A05D27A8 ~	BNGX 0603 CH-E04	Air hole ~	ZYL ~	01 ~	60.00~	6247541
