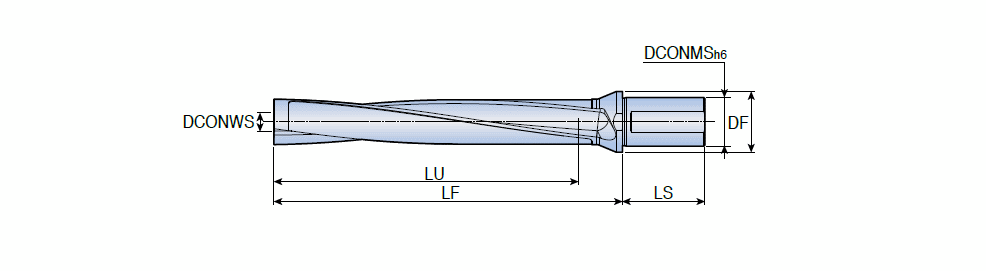

MDB...T2-7 : Modular drill holders of drilling depth in 7xD for modular drill heads of big diameter(Weldon type shank)

Drilling depth: 7xdiameter

Designation	DCN	DCX	DCONWS	DCONMS	DF	LU	LF	LS	S1	Po.Size	Machines	Zeff	Min Tol	Max Tol	Shank	ClssID	DC	L/D	GICAT
MDB D26/27-189-32T2-C26-7	26.00	27.00	10.40	32.00	40.00	168.0	202.30	60.0	0.00~	~	~	2~	0~	0~	W	71E01A0608FE4 ~	26.00~	2.00~	6214999
MDB D28/29-203-32T2-C28-7	28.00	29.00	11.20	32.00	40.00	180.0	216.50	60.0	0.00~	~	~	2~	0~	0~	W	71E01A0608FE4 ~	28.00~	2.00~	6215000
MDB D30/31-217-32T2-C30-7	30.00	31.00	12.00	32.00	40.00	193.0	229.50	60.0	0.00~	~	~	2~	0~	0~	W	71E01A0608FE4 ~	30.00~	2.00~	6241032
MDB D32/33-231-32T2-C32-7	32.00	33.00	12.80	32.00	40.00	205.0	243.70	60.0	0.00~	~	~	2~	0~	0~	W	71E01A0608FE4 ~	32.00~	2.00~	6215001
MDB D34/35-245-40T2-C34-7	34.00	35.00	13.60	40.00	50.00	218.0	260.20	68.0	0.00~	~	~	2~	0~	0~	W	71E01A0608FE4 ~	34.00~	2.00~	6241033
MDB D36/37-259-40T2-C36-7	36.00	37.00	14.40	40.00	50.00	230.0	274.50	68.0	0.00~	~	~	2~	0~	0~	W	71E01A0608FE4 ~	36.00~	2.00~	6241034
MDB D38/39-273-40T2-C38-7	38.00	39.00	15.20	40.00	50.00	242.0	287.40	68.0	0.00~	~	~	2~	0~	0~	W	71E01A0608FE4 ~	38.00~	2.00~	6241035
MDB D40/41-287-40T2-C40-7	40.00	41.00	16.00	40.00	50.00	255.0	301.60	68.0	0.00~	~	~	2~	0~	0~	W	71E01A0608FE4 ~	40.00~	2.00~	6241036

DCONWS: Modular head connection size
