TaeguTec Cutting Tools - Metal Working Tools - Tooling System -

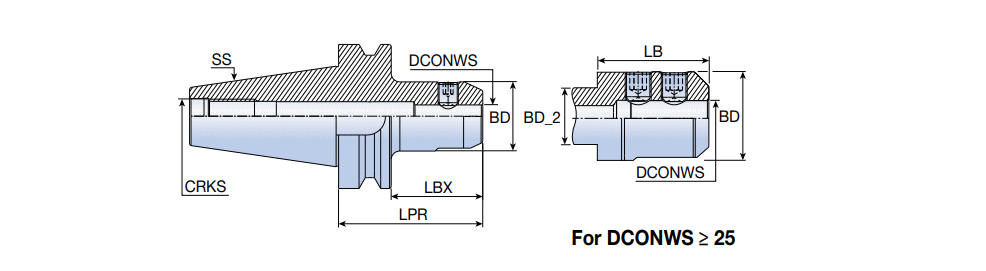

BT-FC-EM : Weldon end mill holders with BT MAS-403 form ADB shanks

Designation	SS	DCONWS	BD	BD_2	LPR	LBX	LB	CRKS		Shank	ClssID	LTA	CCTWS	CCFWS	LS	GICAT
BT30 FC EM12X60	30	12.00	42.00	-	60.00	38.00	-	M12	0.73	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6253081
BT30 FC EM16X60	30	16.00	45.90	-	60.00	38.00	-	M12	0.80	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6253082
BT30 FC EM20X80	30	20.00	52.00	44.40	80.00	58.00	48.00	M12	1.04	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6253083
BT40 FC EM10X65	40	10.00	35.00	-	65.00	39.00	-	M16	1.25	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6167738
BT40 FC EM12X65	40	12.00	42.00	-	65.00	39.00	-	M16	1.29	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6174765
BT40 FC EM16X65	40	16.00	48.00	-	65.00	39.00	-	M16	1.37	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6174766
BT40 FC EM20X75	40	20.00	52.00	-	75.00	49.00	-	M16	1.56	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6174767
BT40 FC EM25X105	40	25.00	65.00	61.00	105.00	79.00	68.00	M16	2.54	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6153694
BT40 FC EM32X110	40	32.00	71.00	61.00	110.00	83.00	73.00	M16	1.87	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6174768
BT50 FC EM12X100	50	12.00	42.00	-	100.00	62.00	-	M24	4.25	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6167739
BT50 FC EM16X100	50	16.00	48.00	-	100.00	63.50	-	M24	4.22	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6253084
BT50 FC EM20X100	50	20.00	52.00	-	100.00	63.50	-	M24	4.33	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6319947
BT50 FC EM25X115	50	25.00	65.00	-	115.00	78.50	-	M24	5.36	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6258064
BT50 FC EM32X115	50	32.00	71.00	-	115.00	78.50	-	M24	5.38	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6253085
BT50 FC EM40X115	50	40.00	90.00	-	115.00	78.50	-	M24	6.29	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6221517
BT50 FC EM50X125	50	50.00	100.00	-	125.00	87.00	-	M24	3.24	W ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	6253086
