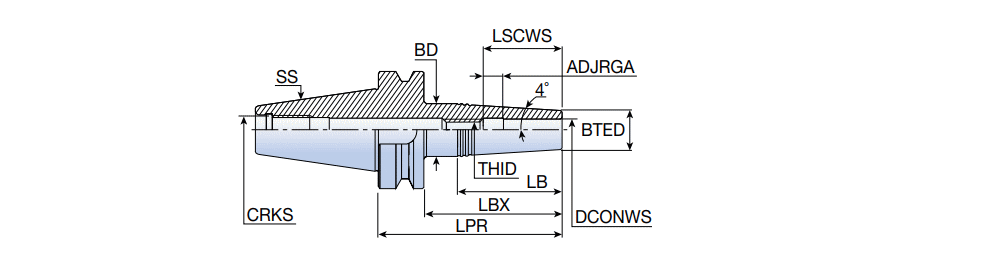

BT-FC-SRK : Thermal shrinking chucks with BT MAS-403 form ADB shanks for solid carbide tools

Designation	SS	DCONWS	BTED	BD	LPR	LBX	LB	ADJRGA	LSCWS	THID	CRKS	Hex Key		Shank	ClssID	LTA	CCTWS	CCFWS	LS	GICAT
BT30 FC SRK 3X50	30	3.00	9.93	15.00	72.00	50.00	36.30	0.00	10.0	M6	M12	3.0	0.32	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	6253109
BT30 FC SRK 4X50	30	4.00	9.93	15.00	72.00	50.00	36.30	0.00	12.0	M6	M12	3.0	0.46	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	6253110
BT30 FC SRK 6X50	30	6.00	10.88	16.00	72.00	50.00	36.60	0.00	18.0	M8	M12	4.0	0.52	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	6253111
BT30 FC SRK 8X50	30	8.00	13.95	20.00	72.00	50.00	43.30	0.00	25.0	M10	M12	5.0	0.48	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	6253112
BT30 FC SRK12X50	30	12.00	20.03	26.00	72.00	50.00	42.70	10.00	42.0	M10	M12	5.0	0.53	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	6253113
