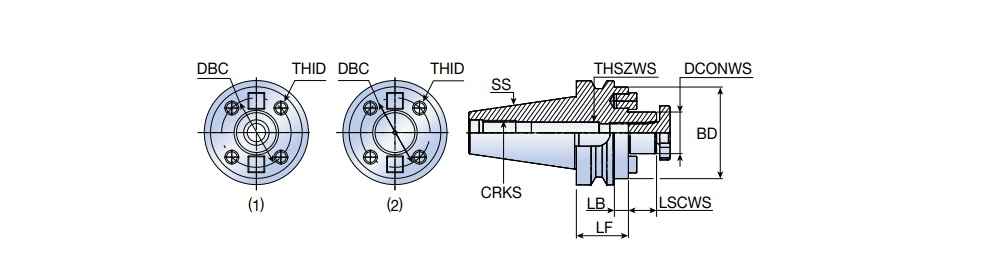

BT-FC-FM : DIN 6357 Face mill arbors with BT MAS-403 form A/AD taper shanks


 IT_RUN-OUT A0.003  IT_TAPER SHANK GRADE  IT_SURFACE HARDNESS 58~60HRC  IT_N5
  DesignationSS DCONWS BD DBC LF LB LSCWS CRKS THID THSZWS Fig ClssID LTA CCTWS CCFWS LS GICATGIREMgiicGICODE
  BT40 FC FM40 40 40.0088.0066.7060.0023.0027.0M16 M12 M20 12.3971EAD3871D313 ~0.00~FDA ~02 ~0.0~6176440 0
  BT50 FC FM40 50 50.0088.0066.7050.0013.5027.0M24 M12 M20 14.5071EAD3871D313 ~0.00~FDA ~02 ~0.0~6253094 0
  BT50 FC FM60 50 50.00128.00101.6088.0041.5040.0M24 M16 - 29.4571EAD3871D313 ~0.00~FDA ~02 ~0.0~6253095 0
Wrench not included
