TCD-5XD (Cylindrical) : WINDRILL head changeable drills with cylindrical shank (5xD)and coolant holes for small diameter drilling

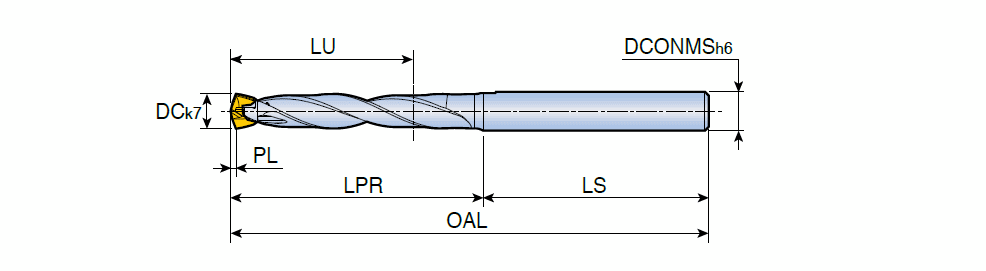

Designation	Tool sty	DCN	DCX	DCONMS	LU	LPR	LS	PL	OAL	SSC		Machines	Zeff	Min Tol	Max Tol	Shank	ClssID	MIID	CICT	DC	L/D	CCFMS	CCTMS	LTA	GICAT
TCD 040-044-06A0-5D	HEAD TYPE ~	4.00	4.40	6.00	21.0	30.70	35.0	0.62	65.70	4	Y ~	~	2~	0~	0~	C ~	71E01A0608FE4 ~	TCD-040-P	1~	0.00~	0.00~	01 ~	ZYL ~	31.08~	6247330
TCD 045-049-06A0-5D	HEAD TYPE ~	4.50	4.90	6.00	23.0	33.70	35.0	0.66	68.70	4.5	Y ~	~	2~	0~	0~	C ~	71E01A0608FE4 ~	TCD-045-P	1~	0.00~	0.00~	01 ~	ZYL ~	33.99~	6247332
TCD 050-054-06A0-5D	HEAD TYPE ~	5.00	5.40	6.00	26.0	36.30	35.0	0.73	71.30	5	Y ~	~	2~	0~	0~	C ~	71E01A0608FE4 ~	TCD-050-P	1~	0.00~	0.00~	01 ~	ZYL ~	36.57~	6245954
TCD 055-059-06A0-5D	HEAD TYPE ~	5.50	5.90	6.00	28.0	39.20	35.0	0.81	74.20	5.5	Y ~	~	2~	0~	0~	C ~	71E01A0608FE4 ~	TCD-055-P	1~	0.00~	0.00~	01 ~	ZYL ~	39.35~	6247334
