TaeguTec Cutting Tools - Metal Working Tools - Tooling System - BT MAS 403

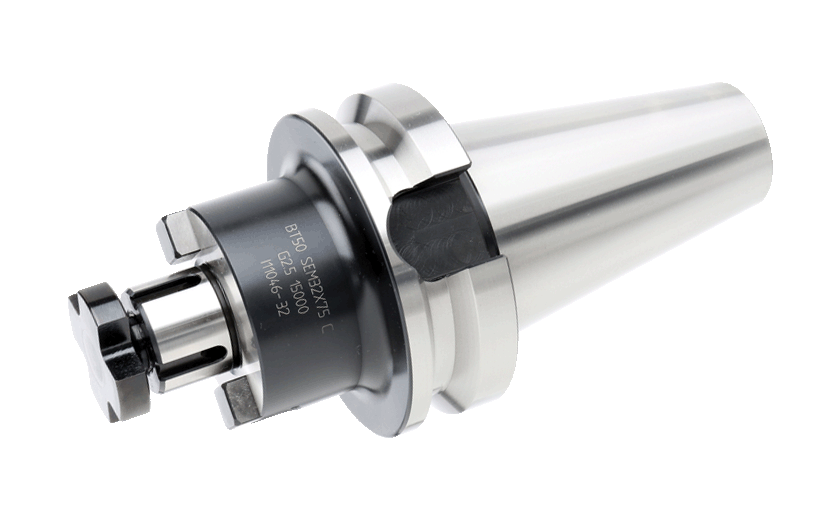

BT-SEM-C : ISO 3937 Face mill arbors with coolant holes & BT MAS-403 form ADB taper shanks

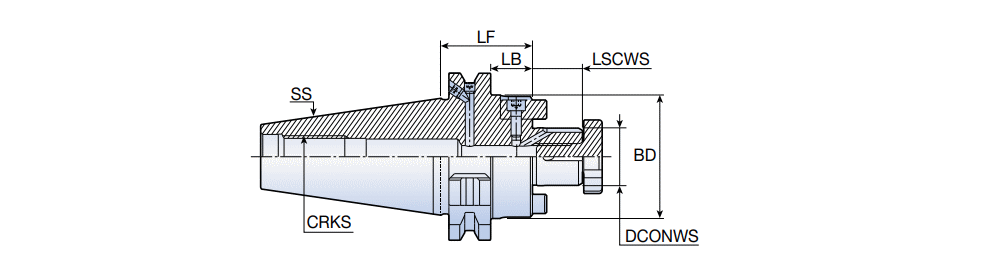

Designation	SS	DCONWS	BD	LF	LB	LSCWS	CRKS		ClssID	LTA	CCTWS	CCFWS	LS	GICAT
BT40 SEM 16X100 C	40	16.00	38.00	100.00	17.0	73.00	M16	1.57	71EAD3871D313 ~	100.00~	FDA ~	02 ~	65.4~	4656321
BT40 SEM 16X60 C	40	16.00	38.00	60.00	17.0	33.00	M16	1.21	71EAD3871D313 ~	60.00~	FDA ~	02 ~	65.4~	4656320
BT40 SEM 22X100 C	40	22.00	47.00	100.00	19.0	73.00	M16	2.20	71EAD3871D313 ~	100.00~	FDA ~	02 ~	65.4~	4656323
BT40 SEM 22X60 C	40	22.00	47.00	60.00	19.0	33.00	M16	1.10	71EAD3871D313 ~	60.00~	FDA ~	02 ~	65.4~	4656322
BT40 SEM 27X100 C	40	27.00	58.00	100.00	21.0	73.00	M16	2.44	71EAD3871D313 ~	100.00~	FDA ~	02 ~	65.4~	4656325
BT40 SEM 27X45 C	40	27.00	58.00	45.00	21.0	18.00	M16	1.32	71EAD3871D313 ~	45.00~	FDA ~	02 ~	65.4~	4656324
BT40 SEM 32X60 C	40	32.00	66.00	60.00	24.0	33.00	M16	1.84	71EAD3871D313 ~	60.00~	FDA ~	02 ~	65.4~	4656326
BT50 SEM 16X100 C	50	16.00	38.00	100.00	17.0	62.00	M24	4.00	71EAD3871D313 ~	100.00~	FDA ~	02 ~	101.8~	4656328
BT50 SEM 16X75 C	50	16.00	38.00	75.00	17.0	37.00	M24	3.82	71EAD3871D313 ~	75.00~	FDA ~	02 ~	101.8~	4656327
BT50 SEM 22X100 C	50	22.00	47.00	100.00	19.0	62.00	M24	4.30	71EAD3871D313 ~	100.00~	FDA ~	02 ~	101.8~	4656330
BT50 SEM 22X48X220C	50	22.00	48.00	220.00	19.0	182.00	M24	5.98	71EAD3871D313 ~	220.00~	FDA ~	02 ~	101.8~	4653286
BT50 SEM 22X61X320C	50	22.00	61.00	320.00	19.0	282.00	M24	9.91	71EAD3871D313 ~	320.00~	FDA ~	02 ~	101.8~	4653287
BT50 SEM 22X75 C	50	22.00	47.00	75.00	19.0	37.00	M24	4.00	71EAD3871D313 ~	75.00~	FDA ~	02 ~	101.8~	4656329
BT50 SEM 27X100 C	50	27.00	58.00	100.00	21.0	62.00	M24	4.72	71EAD3871D313 ~	100.00~	FDA ~	02 ~	101.8~	4656332
BT50 SEM 27X60 C	50	27.00	58.00	60.00	21.0	22.00	M24	3.96	71EAD3871D313 ~	60.00~	FDA ~	02 ~	101.8~	4656331
BT50 SEM 27X61X320C	50	27.00	61.00	320.00	21.0	282.00	M24	9.78	71EAD3871D313 ~	320.00~	FDA ~	02 ~	101.8~	4653288
BT50 SEM 32X100 C	50	32.00	66.00	100.00	24.0	62.00	M24	5.04	71EAD3871D313 ~	100.00~	FDA ~	02 ~	101.8~	4656334
BT50 SEM 32X75 C	50	32.00	66.00	75.00	24.0	37.00	M24	4.50	71EAD3871D313 ~	75.00~	FDA ~	02 ~	101.8~	4656333
BT50 SEM 32X78X390C	50	32.00	78.00	390.00	24.0	352.00	M24	16.66	71EAD3871D313 ~	390.00~	FDA ~	02 ~	101.8~	4653289

If the "B Type" option is required, the plug screw must be removed from the flange cooling hole (Use a 2mm hex key)
Wrench not included
