TFM90AN-R-16 : 90° Face mills with 4 helical cutting edges of double-sided inserts AN 16

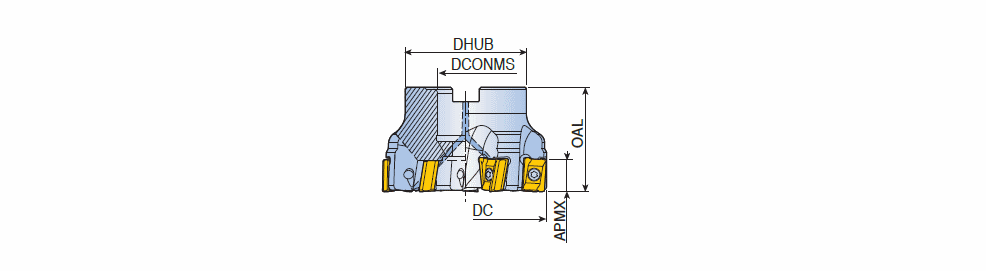

Designation	Tool sty	DC	CICT	DCONMS	DHUB	OAL	APMX	CSP	Arbor	WT	S1	RMPX	KAPR	HAND	PD	Insert	Mtg. Ref	ClssID	MIID	CCTMS	CCFMS	LTA	GICAT
TFM90AN 350-22R-16	FACE MILL ~	50.00	3	22.00	45.00	40.00	15.00	O	A	0.40	16.00~	0.80~	90.0~	~	C ~	C2M-AN16 ~	SH M10X1.5X30 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	40.00~	3105720
TFM90AN 450-22R-16	FACE MILL ~	50.00	4	22.00	45.00	40.00	15.00	O	A	0.40	16.00~	0.80~	90.0~	~	C ~	C2M-AN16 ~	SH M10X1.5X30 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	40.00~	6162189
TFM90AN 463-22R-16	FACE MILL ~	63.00	4	22.00	47.00	40.00	15.00	O	A	0.50	16.00~	0.60~	90.0~	~	C ~	C2M-AN16 ~	SH M10X1.5X30 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	40.00~	6162312
TFM90AN 663-22R-16	FACE MILL ~	63.00	6	22.00	47.00	40.00	15.00	O	A	0.50	16.00~	0.60~	90.0~	~	RC ~	C2M-AN16 ~	SH M10X1.5X30 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	40.00~	6162313
TFM90AN 580-25.4R-16	FACE MILL ~	80.00	5	25.40	70.00	50.00	15.00	O	A	0.80	16.00~	0.45~	90.0~	~	C ~	C2M-AN16 ~	SH M12X1.75X35 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	50.00~	6162315
TFM90AN 580-27R-16	FACE MILL ~	80.00	5	27.00	58.00	50.00	15.00	O	A	0.80	16.00~	0.45~	90.0~	~	C ~	C2M-AN16 ~	SH M12X1.75X35 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	50.00~	6162314
TFM90AN 680-27R-16	FACE MILL ~	80.00	6	27.00	58.00	50.00	15.00	O	A	1.19	16.00~	0.60~	90.0~	~	RC ~	C2M-AN16 ~	SH M12X1.75X35 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	50.00~	3112819
TFM90AN 780-25.4R-16	FACE MILL ~	80.00	7	25.40	70.00	50.00	15.00	O	A	0.90	16.00~	0.45~	90.0~	~	RF ~	C2M-AN16 ~	SH M12X1.75X35 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	50.00~	3106053
TFM90AN 780-27R-16	FACE MILL ~	80.00	7	27.00	58.00	50.00	15.00	O	A	0.90	16.00~	0.45~	90.0~	~	RF ~	C2M-AN16 ~	SH M12X1.75X35 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	50.00~	3104369
TFM90AN 5100-31.75R-16	FACE MILL ~	100.00	5	31.75	80.00	50.00	15.00	X	B	1.30	16.00~	0.35~	90.0~	~	C ~	C2M-AN16 ~	SH M16X2.0X35 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	50.00~	6162317
TFM90AN 5100-32R-16	FACE MILL ~	100.00	5	32.00	85.00	50.00	15.00	O	A	1.30	16.00~	0.35~	90.0~	~	C ~	C2M-AN16 ~	SH M16X2.0X35 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	50.00~	6162316
TFM90AN 8100-31.75R-16	FACE MILL ~	100.00	8	31.75	80.00	50.00	15.00	X	B	1.50	16.00~	0.35~	90.0~	~	RC ~	C2M-AN16 ~	SH M16X2.0X35 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	50.00~	3106054
TFM90AN 8100-32R-16	FACE MILL ~	100.00	8	32.00	85.00	50.00	15.00	O	A	1.50	16.00~	0.35~	90.0~	~	RC ~	C2M-AN16 ~	SH M16X2.0X35 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	50.00~	3104492
TFM90AN 10125-38.1R-16	FACE MILL ~	125.00	10	38.10	80.00	63.00	15.00	X	B	3.70	16.00~	0.25~	90.0~	~	RC ~	C2M-AN16 ~	SH M20X2.5X40 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	63.00~	3106571
TFM90AN 10125-40R-16	FACE MILL ~	125.00	10	40.00	85.00	63.00	15.00	O	A	3.70	16.00~	0.25~	90.0~	~	RC ~	C2M-AN16 ~	SH M20X2.5X40 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	63.00~	3104493
TFM90AN 7125-38.1R-16	FACE MILL ~	125.00	7	38.10	80.00	63.00	15.00	X	B	3.90	16.00~	0.25~	90.0~	~	C ~	C2M-AN16 ~	SH M20X2.5X40 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	63.00~	6162433
TFM90AN 7125-40R-16	FACE MILL ~	125.00	7	40.00	85.00	63.00	15.00	O	A	3.90	16.00~	0.25~	90.0~	~	C ~	C2M-AN16 ~	SH M20X2.5X40 ~	71E01A05B627B ~	ANHX 160708R-M	FDA ~	02 ~	63.00~	6162318
TFM90AN 12160-40R-16	FACE MILL ~	160.00	12	40.00	110.00	63.00	15.00	X	C	5.70	16.00~	0.15~	90.0~	~	RC ~	C2M-AN16 ~	- ~	71E01A05B627B ~	ANHX 160708R-M	SPK ~	02 ~	63.00~	6162321
TFM90AN 8160-40R-16	FACE MILL ~	160.00	8	40.00	110.00	63.00	15.00	X	C	5.00	16.00~	0.15~	90.0~	~	C ~	C2M-AN16 ~	- ~	71E01A05B627B ~	ANHX 160708R-M	SPK ~	02 ~	63.00~	6162320
TFM90AN 14200-60R-16	FACE MILL ~	200.00	14	60.00	130.00	63.00	15.00	X	C	7.00	16.00~	0.10~	90.0~	~	RC ~	C2M-AN16 ~	- ~	71E01A05B627B ~	ANHX 160708R-M	SPK ~	02 ~	63.00~	3105732

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
