TaeguTec Cutting Tools - Metal Working Tools - Thread Making - Internal Thread Milling

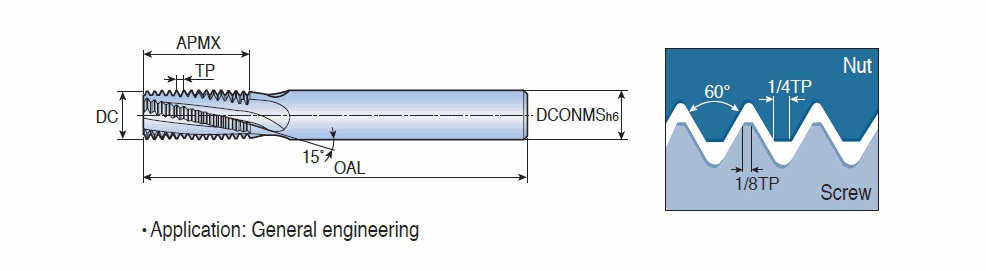

MTEC-ISO : Solid carbide internal threading end mills for ISO metric threads

Related solid for : C5 SRKIN 14X80

Designation	TP	M coarse	M Fine	DCONMS	DC	APMX	OAL	NOF	Shank	HAND	ClssID	CCMS	CZCMS	FTDZ	fz (max)	fz (min)	LF	LTA	THFT	TPI	TTP	TTP_DF2		ZAX	LU	GICAT	GIREM	giic	GICODE	Grade
MTEC 1414D33 2.5ISO	2.50	M20	>22	14.00	14.00	33.80	84.00	4	C ~	~	71EF07E083383 ~	ZYL01G1400h$06 ~	1400 ~	M20x2.5 ~	0.130~	0.040~	84.00~	39.00~	M60 ~	-~	INT ~	- ~	0.15~	13~	33.8~	6342458		1		TT9030
MTEC 1414D48 2.5ISO	2.50	M20	>22	14.00	14.00	48.80	105.00	4	C ~	~	71EF07E083383 ~	ZYL01G1400h$06 ~	1400 ~	M20x2.5 ~	0.130~	0.040~	105.00~	62.00~	M60 ~	-~	INT ~	- ~	0.19~	19~	48.8~	6342459		1		TT9030
