TaeguTec Cutting Tools - Metal Working Tools - Thread Making - Internal Thread Milling

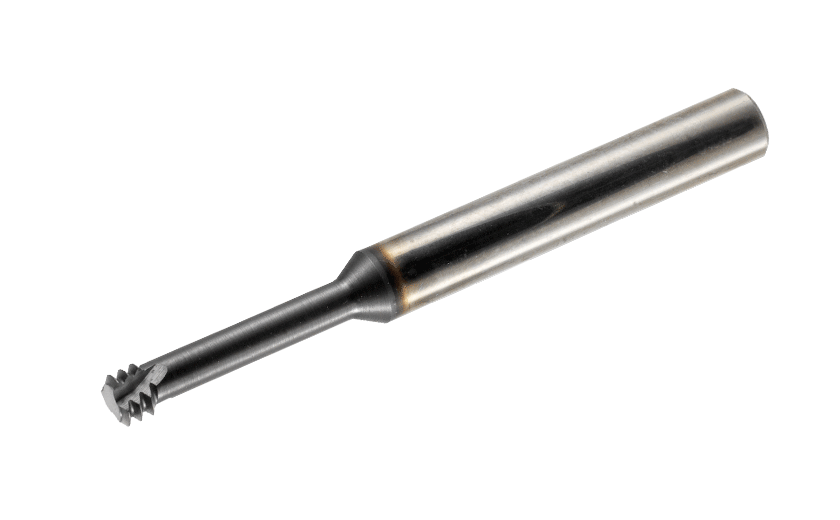

MTECS-ISO : Short solid carbide threading end mills for small diameter internal ISO metric threads with short contacts during threading

Related solid for : DIN69871 40 SRK 3X85

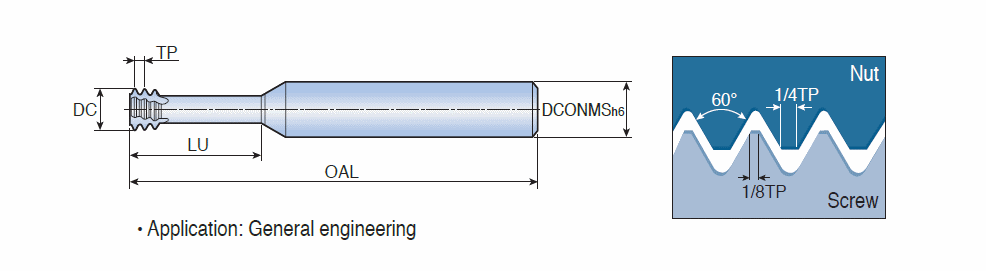

Designation	TP	TDZ	DCONMS	DC	LU	OAL	HAND	NOF	Shank	ClssID	APMX	CCMS	CZCMS	FTDZ	fz (max)	fz (min)	LF	LTA	THFT	TPI	TTP	TTP_DF2		ZAX	GICAT	GIREM	giic	Grade
MTECS03007C2 0.25ISO	0.25	M1.0	3.00	0.72	2.50	39.00	R ~	3	C ~	71EF07E083383 ~	0.63~	ZYL01F3000h$06 ~	3000 ~	M1x0.25 ~	0.050~	0.020~	39.00~	24.00~	M60 ~	-~	INT ~	- ~	0.00~	1~	6346398		1	TT9030
MTECS03009C3 0.25ISO	0.25	M1.2	3.00	0.90	3.00	39.00	R ~	3	C ~	71EF07E083383 ~	0.63~	ZYL01F3000h$06 ~	3000 ~	M1.2x0.25 ~	0.050~	0.020~	39.00~	24.00~	M60 ~	-~	INT ~	- ~	0.00~	1~	6342606		1	TT9030
MTECS03011C4 0.3ISO	0.30	M1.4	3.00	1.05	4.00	39.00	R ~	3	C ~	71EF07E083383 ~	0.76~	ZYL01F3000h$06 ~	3000 ~	M1.4x0.3 ~	0.050~	0.020~	39.00~	24.00~	M60 ~	-~	INT ~	- ~	0.00~	1~	6342575	Specially designed for the production of dental implants	1	TT9030
MTECS03012C50.35ISO	0.35	M1.6	3.00	1.20	5.00	39.00	R ~	3	C ~	71EF07E083383 ~	0.89~	ZYL01F3000h$06 ~	3000 ~	M1.6x0.35 ~	0.050~	0.020~	39.00~	24.00~	M60 ~	-~	INT ~	- ~	0.00~	1~	6342623	Specially designed for the production of dental implants	1	TT9030
MTECS 03016C60.4ISO	0.40	M2	3.00	1.53	6.00	39.00	R ~	3	C ~	71EF07E083383 ~	1.03~	ZYL01F3000h$06 ~	3000 ~	M2x0.4 ~	0.050~	0.020~	39.00~	24.00~	M60 ~	-~	INT ~	- ~	0.00~	1~	6342624	Specially designed for the production of dental implants	1	TT9030
