TaeguTec Cutting Tools - Metal Working Tools - Thread Making - External Thread Milling

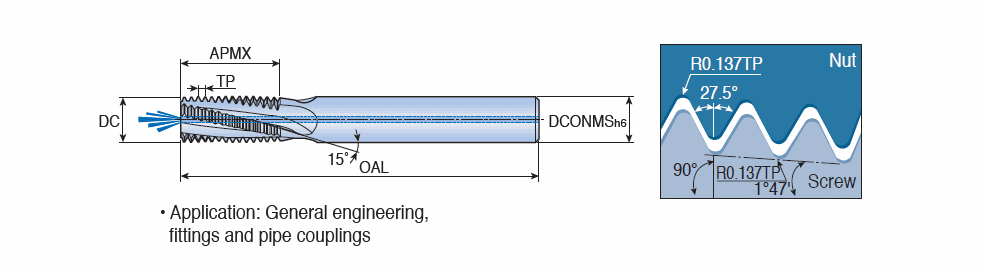

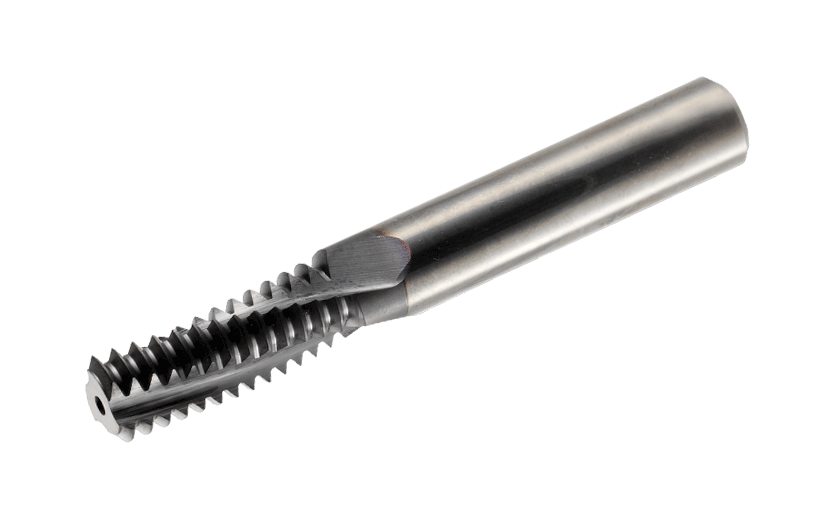

MTECB-BSPT : Solid carbide threading end mills with internal coolant holes for extenal or internal BSPT threads

Designation	S1	TPI	TDZ	DCONMS	DC	APMX	OAL	NOF	Shank	HAND	ClssID	CCMS		CZCMS	fz (max)	fz (min)	LF	LTA	THFT	TP	TTP_DF2	TTP		ZAX	LU	GICAT	GIREM	giic	GICODE	Grade
MTECB 1010D1619BSPT	2.00~	19.0	RC1/4-3/8	10.00	10.00	16.70	73.00	4	C	R ~	71EF07E083383 ~	ZYL01G1000h$06 ~	Y ~	1000 ~	0.110~	0.030~	999.00~	58.00~	BSPT55 ~	1.337~	- ~	BOTH ~	0.07~	12~	16.7~	6346382		1		TT9030
MTECB 1616E2614BSPT	3.00~	14.0	RC1/2-7/8	16.00	16.00	26.30	105.00	4	C	R ~	71EF07E083383 ~	ZYL01G1600h$06 ~	Y ~	1600 ~	0.210~	0.040~	999.00~	24.00~	BSPT55 ~	1.814~	- ~	BOTH ~	0.26~	14~	26.3~	6214499		1		TT9030
