TaeguTec Cutting Tools - Metal Working Tools - Thread Making - Internal Thread Milling

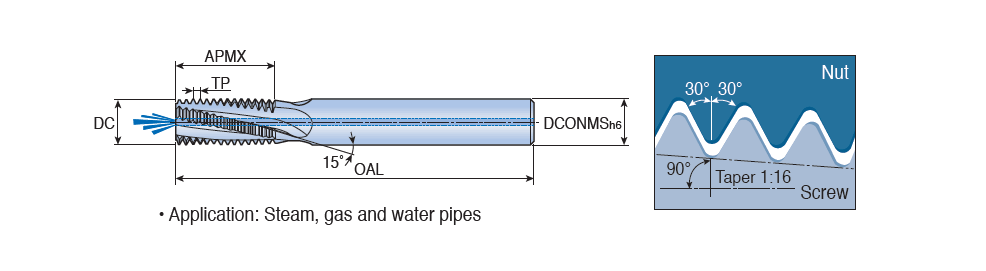

MTECB-NPT : Solid carbide threading end mill with internal coolant holes for internal or extenal NPT threads

Designation	TPI	TDZ	DCONMS	DC	APMX	OAL	NOF	Shank	HAND	ClssID	CCMS		CZCMS	FTDZ	fz (max)	fz (min)	LTA	THFT	TP	TTP	TTP_DF2		ZAX	LU	GICAT	giic	Grade
MTECB 16155D2214NPT	14.0	1/2-3/4	16.00	15.50	22.70	105.00	4	C	R ~	71EF07E083383 ~	ZYL01G1600h$06 ~	Y ~	1600 ~	1/2,3/4-14 NPT ~	0.210~	0.040~	999.00~	NPT60 ~	-~	BOTH ~	- ~	0.26~	12~	22.7~	6214502	1	TT9030
MTECB 1010D16 18NPT	18.0	1/4-3/8	10.00	10.00	16.20	73.00	4	C	R ~	71EF07E083383 ~	ZYL01G1000h$06 ~	Y ~	1000 ~	1/4,3/8-18 NPT ~	0.110~	0.030~	999.00~	NPT60 ~	-~	BOTH ~	- ~	0.07~	11~	0.0~	6344782	1	TT9030
MTECB 08076C1027NPT	27.0	1/8	8.00	7.60	10.80	64.00	3	C	R ~	71EF07E083383 ~	ZYL01F8000h$06 ~	Y ~	8000 ~	1/8-27 NPT ~	0.100~	0.030~	999.00~	NPT60 ~	-~	BOTH ~	- ~	0.04~	11~	10.8~	6214501	1	TT9030
