TaeguTec Cutting Tools - Metal Working Tools - Thread Making - External Thread Milling

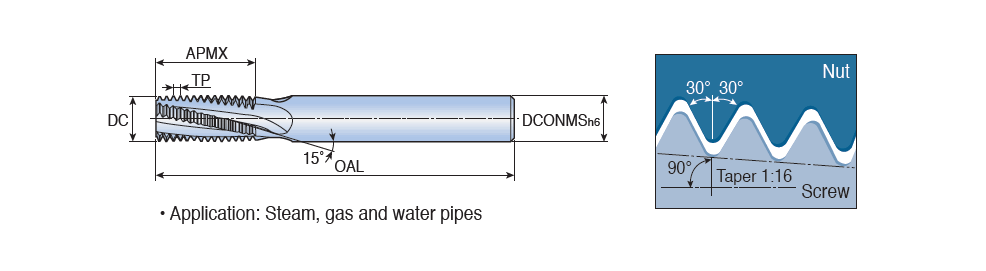

MTEC-NPT : Solid carbide threading end mills for internal or external NPT threads

Designation	TPI	TDZ	DCONMS	DC	APMX	OAL	NOF	Shank	HAND	ClssID	CCMS	CZCMS	FTDZ	fz (max)	fz (min)	LTA	THFT	TP	TTP	TTP_DF2		ZAX	LU	GICAT	giic	Grade
MTEC 1616D2711.5NPT	11.5	1-2	16.00	16.00	27.60	105.00	4	C	R ~	71EF07E083383 ~	ZYL01G1600h$06	1600 ~	1,2-11.5 NPT ~	0.210~	0.040~	999.00~	NPT60 ~	2.310~	BOTH ~	- ~	0.25~	12~	27.6~	6342479	1	TT9030
MTEC 1212D20 14 NPT	14.0	1/2-3/4	12.00	12.00	20.90	84.00	4	C	R ~	71EF07E083383 ~	ZYL01G1200h$06	1200 ~	1/2,3/4-14 NPT ~	0.120~	0.030~	999.00~	NPT60 ~	1.814~	BOTH ~	- ~	0.12~	11~	20.9~	6342478	1	TT9030
MTEC 0808C14 18 NPT	18.0	1/4-3/8	8.00	8.00	14.80	64.00	3	C	R ~	71EF07E083383 ~	ZYL01F8000h$06	8000 ~	1/4,3/8-18 NPT ~	0.100~	0.030~	999.00~	NPT60 ~	1.814~	BOTH ~	- ~	0.04~	10~	14.8~	6342477	1	TT9030
MTEC 0606C9 27 NPT	27.0	1/8	6.00	6.00	9.90	58.00	3	C	R ~	71EF07E083383 ~	ZYL01F6000h$06	6000 ~	1/16,1/8-27 NPT ~	0.090~	0.030~	999.00~	NPT60 ~	0.940~	BOTH ~	- ~	0.02~	10~	9.9~	6342476	1	TT9030
