AES 3..-R : 3 Flute solid carbide end mills of medium length type with corner R for aluminum machining
 EM FLUTES_3                                        EM HELIX ANGLE_45

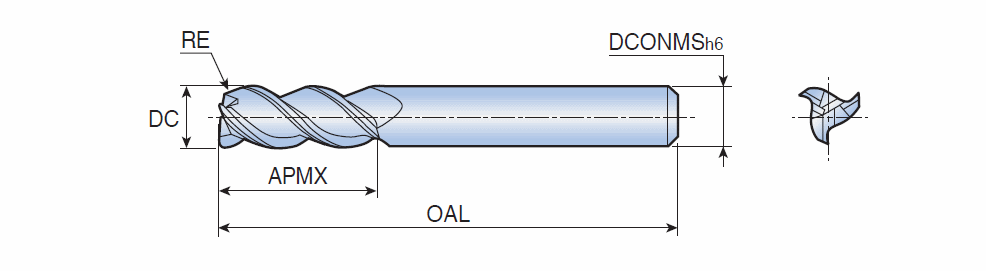

  DesignationTool sty DC RE OAL APMX DCONMS FHA Shank RMPX fz
  AES 3060-R0.5 SOLID TYPE ~6.000.5052.0015.006.0045.0~C ~5.00~0.0300.0703~71E01A05D27A8 ~ZYL ~01 ~20.00~4104280 1 UF10
  AES 3060-R1.0 SOLID TYPE ~6.001.0052.0015.006.0045.0~C ~5.00~0.0300.0703~71E01A05D27A8 ~ZYL ~01 ~20.00~4104281 1 UF10
  AES 3060-R2.0 SOLID TYPE ~6.002.0052.0015.006.0045.0~C ~5.00~0.0300.0703~71E01A05D27A8 ~ZYL ~01 ~20.00~4106912 1 UF10
  AES 3080-R0.5 SOLID TYPE ~8.000.5060.0020.008.0045.0~C ~5.00~0.0300.0903~71E01A05D27A8 ~ZYL ~01 ~25.50~4104282 1 UF10
  AES 3080-R1.0 SOLID TYPE ~8.001.0060.0020.008.0045.0~C ~5.00~0.0300.0903~71E01A05D27A8 ~ZYL ~01 ~25.50~4104283 1 UF10
  AES 3080-R2.0 SOLID TYPE ~8.002.0060.0020.008.0045.0~C ~5.00~0.0300.0903~71E01A05D27A8 ~ZYL ~01 ~25.50~4104284 1 UF10
  AES 3100-R1.0 SOLID TYPE ~10.001.0068.0025.0010.0045.0~C ~5.00~0.0300.1003~71E01A05D27A8 ~ZYL ~01 ~31.00~4104285 1 UF10
  AES 3100-R1.5 SOLID TYPE ~10.001.5068.0025.0010.0045.0~C ~5.00~0.0300.1003~71E01A05D27A8 ~ZYL ~01 ~31.00~4104286 1 UF10
  AES 3100-R2.0 SOLID TYPE ~10.002.0068.0025.0010.0045.0~C ~5.00~0.0300.1003~71E01A05D27A8 ~ZYL ~01 ~31.00~4104287 1 UF10
  AES 3100-R3.0 SOLID TYPE ~10.003.0068.0025.0010.0045.0~C ~5.00~0.0300.1003~71E01A05D27A8 ~ZYL ~01 ~31.00~4106913 1 UF10
  AES 3100-R4.0 SOLID TYPE ~10.004.0068.0025.0010.0045.0~C ~5.00~0.0300.1003~71E01A05D27A8 ~ZYL ~01 ~31.00~4106914 1 UF10
  AES 3120-R1.0 SOLID TYPE ~12.001.0076.0030.0012.0045.0~C ~5.00~0.0300.1203~71E01A05D27A8 ~ZYL ~01 ~38.00~4104288 1 UF10
  AES 3120-R2.0 SOLID TYPE ~12.002.0076.0030.0012.0045.0~C ~5.00~0.0300.1203~71E01A05D27A8 ~ZYL ~01 ~38.00~4104289 1 UF10
  AES 3120-R3.0 SOLID TYPE ~12.003.0076.0030.0012.0045.0~C ~5.00~0.0300.1203~71E01A05D27A8 ~ZYL ~01 ~38.00~4104290 1 UF10
  AES 3120-R4.0 SOLID TYPE ~12.004.0076.0030.0012.0045.0~C ~5.00~0.0300.1203~71E01A05D27A8 ~ZYL ~01 ~38.00~4106915 1 UF10
  AES 3160-R1.0 SOLID TYPE ~16.001.0090.0040.0016.0045.0~C ~5.00~0.0500.1403~71E01A05D27A8 ~ZYL ~01 ~51.00~4104291 1 UF10
  AES 3160-R2.0 SOLID TYPE ~16.002.0090.0040.0016.0045.0~C ~5.00~0.0500.1403~71E01A05D27A8 ~ZYL ~01 ~51.00~4104292 1 UF10
  AES 3160-R3.0 SOLID TYPE ~16.003.0090.0040.0016.0045.0~C ~5.00~0.0500.1403~71E01A05D27A8 ~ZYL ~01 ~51.00~4104293 1 UF10
