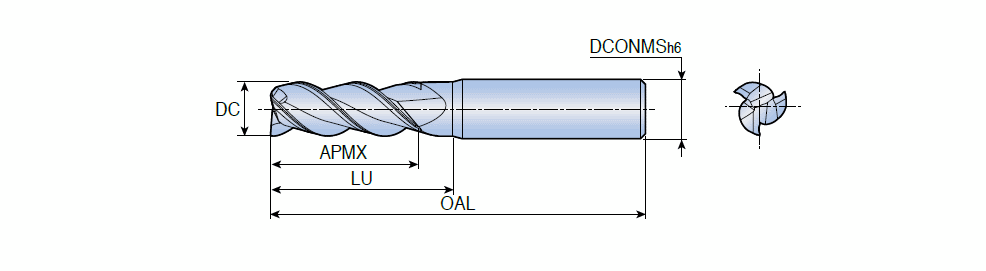

AES 3..ML : 3 Flute solid carbide end mills of long length type for aluminum machining

Designation	Tool sty	DC	DCONMS	APMX	LU	OAL	Type	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	giic	Grade
AES 3030ML	SOLID TYPE ~	3.00	6.00	15.00	18.0	60.00	B ~	45.0~	C ~	5.00~	0.020	0.050	3~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	4107603	1	UF10
AES 3040ML	SOLID TYPE ~	4.00	6.00	20.00	25.0	60.00	B ~	45.0~	C ~	5.00~	0.020	0.050	3~	71E01A05D27A8 ~	ZYL ~	01 ~	29.80~	4107604	1	UF10
AES 3050ML	SOLID TYPE ~	5.00	6.00	25.00	30.0	65.00	B ~	45.0~	C ~	5.00~	0.020	0.060	3~	71E01A05D27A8 ~	ZYL ~	01 ~	32.90~	4107605	1	UF10
AES 3060ML	SOLID TYPE ~	6.00	6.00	25.00	-	65.00	A ~	45.0~	C ~	5.00~	0.030	0.070	3~	71E01A05D27A8 ~	ZYL ~	01 ~	29.00~	4107606	1	UF10
AES 3070ML	SOLID TYPE ~	7.00	8.00	30.00	35.0	75.00	B ~	45.0~	C ~	5.00~	0.030	0.090	3~	71E01A05D27A8 ~	ZYL ~	01 ~	39.00~	4107607	1	UF10
AES 3080ML	SOLID TYPE ~	8.00	8.00	30.00	-	75.00	A ~	45.0~	C ~	5.00~	0.030	0.090	3~	71E01A05D27A8 ~	ZYL ~	01 ~	39.00~	4107608	1	UF10
AES 3090ML	SOLID TYPE ~	9.00	10.00	35.00	40.0	80.00	B ~	45.0~	C ~	5.00~	0.030	0.100	3~	71E01A05D27A8 ~	ZYL ~	01 ~	42.90~	4107609	1	UF10
AES 3100ML	SOLID TYPE ~	10.00	10.00	35.00	-	80.00	A ~	45.0~	C ~	5.00~	0.030	0.100	3~	71E01A05D27A8 ~	ZYL ~	01 ~	40.00~	4107610	1	UF10
AES 3120ML	SOLID TYPE ~	12.00	12.00	40.00	-	95.00	A ~	45.0~	C ~	5.00~	0.030	0.120	3~	71E01A05D27A8 ~	ZYL ~	01 ~	50.00~	4107611	1	UF10
AES 3140ML	SOLID TYPE ~	14.00	16.00	55.00	62.0	110.00	B ~	45.0~	C ~	5.00~	0.050	0.140	3~	71E01A05D27A8 ~	ZYL ~	01 ~	68.00~	4107612	1	UF10
AES 3160ML	SOLID TYPE ~	16.00	16.00	55.00	-	110.00	A ~	45.0~	C ~	5.00~	0.050	0.140	3~	71E01A05D27A8 ~	ZYL ~	01 ~	62.00~	4107613	1	UF10
AES 3180ML	SOLID TYPE ~	18.00	20.00	60.00	70.0	125.00	B ~	45.0~	C ~	5.00~	0.050	0.150	3~	71E01A05D27A8 ~	ZYL ~	01 ~	75.00~	4107614	1	UF10
AES 3200ML	SOLID TYPE ~	20.00	20.00	60.00	-	125.00	A ~	45.0~	C ~	5.00~	0.050	0.150	3~	71E01A05D27A8 ~	ZYL ~	01 ~	75.00~	4107615	1	UF10
