BT-MB : MB Modular connection system with BT MAS-403 taper shanks

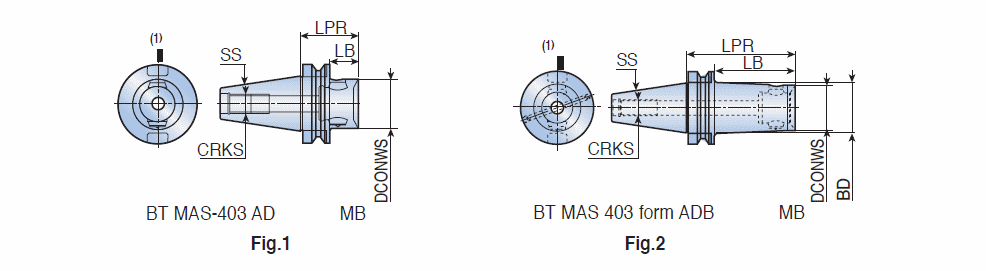

  DesignationS1 SS DCONWS LPR LB BD CRKS Fig GICATGIREMgiicGICODE
  BT30 MB32 30.00~30 MB32 32.0010.6-M12 0.3814652335 0
  BT30 MB50 30.00~30 MB50 60.00--M12 0.7014652339 0
  BT40 MB40 40.00~40 MB40 45.0018.0-M16 0.9914655080 0
  BT40 MB50 40.00~40 MB50 48.0021.0-M16 1.0014652346 0
  BT40 MB63 40.00~40 MB63 66.00--M16 1.3414652377 0
  BT45 MB50 45.00~45 MB50 62.0029.0-M20 2.3214652353 0
  BT50 MB50 50.00~50 MB50 66.0028.0-M24 3.7814652360 0
  BT50 MB63 50.00~50 MB63 75.0037.0-M24 3.9814652390 0
  BT50 MB80 50.00~50 MB80 75.0037.0-M24 4.2414652411 0
  BT40 MB40X120 51.00~40 MB40 93.00120.044.50M16 1.7824655068 0
  BT40 MB50X120 51.00~40 MB50 93.00120.0-M16 2.0924652348 0
  BT50 MB50X120 51.00~50 MB50 82.00120.060.00M24 4.6424652362 0
  BT50 MB63X150 51.00~50 MB63 112.00150.070.00M24 5.8524652392 0
  BT50 MB80X180 51.00~50 MB80 142.00180.0-M24 8.1924652413 0
  BT50 MB110X140 100.00~50 MB110 140.00102.0-M24 6.8026128379 0
(1)Cutting edge position.
For L1 >100 mm the front end is tapered.
Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
