SMH MB : ISO 3937 Shell mill holders with MB modular connections

Related holder for : TFM90AP 563-22R-12

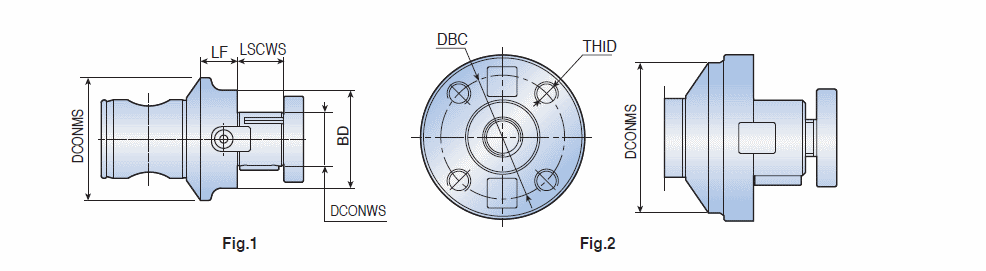

Designation	DCONMS	DCONWS	BD	DBC	THID	LF	LSCWS	Fig	WT	GICAT
SMH MB40-22	40.00	22.00	40.00	-	-	13.00	19.0	1	0.38	4652595
SMH MB50-22	50.00	22.00	40.00	-	-	15.00	19.0	1	0.55	4652597
SMH MB63-22	63.00	22.00	60.00	-	-	15.00	19.0	1	1.01	4656189

Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
