Tooling System
Main Application
BT MAS 403
Sub Application
BT-TSK (Slim Chuck) : High accuracy slim collet chucks for finishing with reamer & end mills and general machining with drills & end mills in MAS-403 form AD taper shanks


 IT_N5  IT_RUN-OUT A0.003  IT_SURFACE HARDNESS 58~60HRC  IT_BALANCE GRADE  IT_TAPER SHANK GRADE  IT_BALANCE_20000 RPM
Related holder for : TSKC 16-8.0

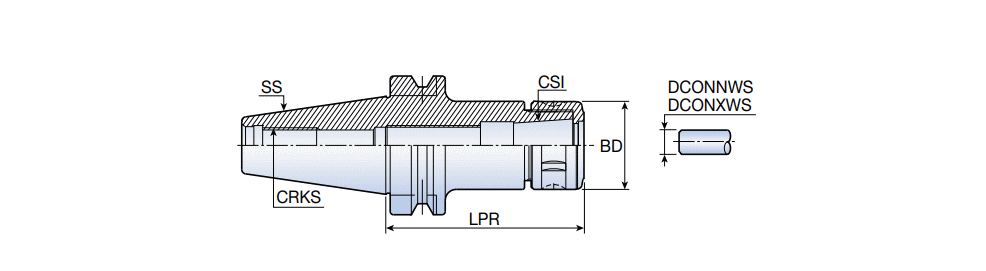

  DesignationS1 SS CSI DCONNWS DCONXWS BD LPR nut spanner CRKS ClssID LTA GICATGIREMgiicGICODE
  BT40 TSK 16-90 17.00~40 16 2.5016.0040.0090.00TSKN 16 TSKS 16 M16 71EAD3871D313 ~90.00~4655103 0
  BT40 TSK 16-120 18.00~40 16 2.5016.0040.00120.00TSKN 16 TSKS 16 M16 71EAD3871D313 ~120.00~4655104 0
  BT50 TSK 16-120   40.00~50 16 2.5016.0040.00120.00TSKN 16 TSKS 16 M24 71EAD3871D313 ~120.00~4655113 Balance to G6.3 at 20,000RPM 0
  BT50 TSK 16-165   40.00~50 16 2.5016.0040.00165.00TSKN 16 TSKS 16 M24 71EAD3871D313 ~165.00~4655114 Balance to G6.3 at 20,000RPM 0
  BT50 TSK 16-195   40.00~50 16 2.5016.0040.00195.00TSKN 16 TSKS 16 M24 71EAD3871D313 ~195.00~4655115 Balance to G6.3 at 20,000RPM 0
Add B for coolant through flange
