Tooling System
Main Application
DIN 69871
Sub Application
DIN69871-TSK (Slim Chuck) : High accuracy slim collet chucks for finishing with reamer & end mills and general machining with drills & end mills in DIN69871 form AD shanks


 IT_BALANCE_20000 RPM  IT_BALANCE GRADE  IT_RUN-OUT A0.003  IT_TAPER SHANK GRADE  IT_SURFACE HARDNESS 58~60HRC  IT_N5
Related holder for : TSKC 10-6.0

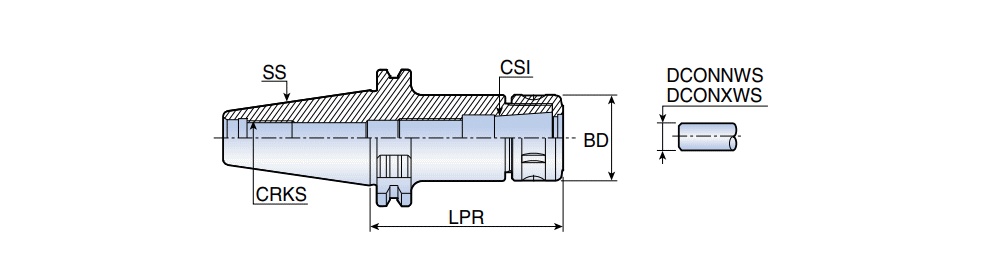

  DesignationS1 SS CSI DCONNWS DCONXWS BD LPR nut spanner CRKS collet ClssID LTA LS GICATGIREMgiicGICODE
  DIN69871 40 TSK 10-90 3.00~40 10 1.5010.0027.3090.00TSKN 10 TSKS 10 M16 TSK 10 ~71EAD3871D313 ~90.00~68.4~4655132 0
  DIN69871 40 TSK 10-120 4.00~40 10 1.5010.0027.30120.00TSKN 10 TSKS 10 M16 TSK 10 ~71EAD3871D313 ~120.00~68.4~4655133 0
  DIN69871 50 TSK 10-120   11.00~50 10 1.5010.0027.30120.00TSKN 10 TSKS 10 M24 TSK 10 ~71EAD3871D313 ~120.00~101.8~4655141 Balance to G6.3 at 12,000RPM 0
  DIN69871 50 TSK 10-165   11.00~50 10 1.5010.0027.30165.00TSKN 10 TSKS 10 M24 TSK 10 ~71EAD3871D313 ~165.00~101.8~4655142 Balance to G6.3 at 12,000RPM 0
  DIN69871 50 TSK 10-195   11.00~50 10 1.5010.0027.30195.00TSKN 10 TSKS 10 M24 TSK 10 ~71EAD3871D313 ~195.00~101.8~4655143 Balance to G6.3 at 12,000RPM 0
Add B for coolant through flange
