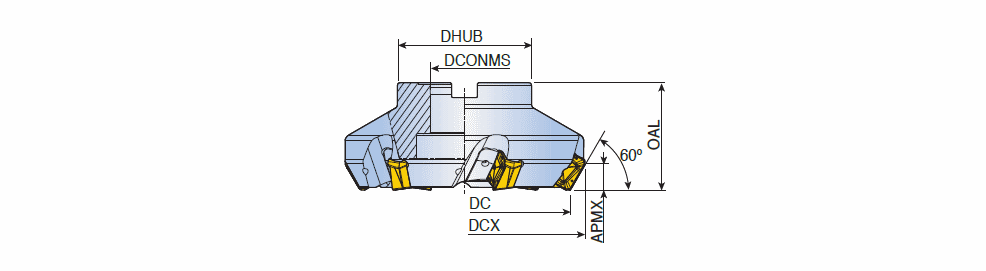

LM60SC-R-27 : 60° Face mills with unique wedge clamping & thicker positive strong 4 cutting edges inserts SCKN 27 for heavy machining in maximum depth of cut 18 mm

Designation	Tool sty	DC	CICT	DCONMS	DHUB	OAL	DCX	APMX	Arbor	WT	S1	RMPX	KAPR	HAND	PD	Insert	ClssID	MIID	CSP	CCTMS	CCFMS	LTA	GICAT
LM60SC 5125-40R-27	~	125.00	5	40.00	85.00	63.00	146.00	18.00	B	4.60	27.00~	0.00~	60.0~	~	C ~	LM-SC27 ~	71E01A05B627B ~	SCKN 2708 DDTR-HE	X ~	FDA ~	02 ~	0.00~	3109715
LM60SC 6160-40R-27	~	160.00	6	40.00	110.00	80.00	181.00	18.00	C	8.70	27.00~	0.00~	60.0~	~	C ~	LM-SC27 ~	71E01A05B627B ~	SCKN 2708 DDTR-HE	X ~	SPK ~	02 ~	0.00~	3109716
LM60SC 8160-40R-27	~	160.00	8	40.00	110.00	80.00	181.00	18.00	C	8.40	27.00~	0.00~	60.0~	~	C ~	LM-SC27 ~	71E01A05B627B ~	SCKN 2708 DDTR-HE	X ~	SPK ~	02 ~	0.00~	3109717
LM60SC 10200-60R-27	~	200.00	10	60.00	130.00	80.00	220.90	18.00	C	12.30	27.00~	0.00~	60.0~	~	C ~	LM-SC27 ~	71E01A05B627B ~	SCKN 2708 DDTR-HE	X ~	SPK ~	02 ~	0.00~	3109718
LM60SC 8200-60R-27	~	200.00	8	60.00	130.00	80.00	220.90	18.00	C	12.40	27.00~	0.00~	60.0~	~	C ~	LM-SC27 ~	71E01A05B627B ~	SCKN 2708 DDTR-HE	X ~	SPK ~	02 ~	0.00~	3109032
LM60SC 10250-60R-27	~	250.00	10	60.00	160.00	80.00	270.80	18.00	C	19.90	27.00~	0.00~	60.0~	~	C ~	LM-SC27 ~	71E01A05B627B ~	SCKN 2708 DDTR-HE	X ~	SPK ~	02 ~	0.00~	3109719
LM60SC 12250-60R-27	~	250.00	12	60.00	160.00	80.00	270.80	18.00	C	19.80	27.00~	0.00~	60.0~	~	C ~	LM-SC27 ~	71E01A05B627B ~	SCKN 2708 DDTR-HE	X ~	SPK ~	02 ~	0.00~	3109720
LM60SC 12315-60R-27	~	315.00	12	60.00	220.00	80.00	335.80	18.00	D	26.00	27.00~	0.00~	60.0~	~	C ~	LM-SC27 ~	71E01A05B627B ~	SCKN 2708 DDTR-HE	X ~	SPK ~	02 ~	0.00~	3109721
LM60SC 15315-60R-27	~	315.00	15	60.00	220.00	80.00	335.80	18.00	D	25.90	27.00~	0.00~	60.0~	~	C ~	LM-SC27 ~	71E01A05B627B ~	SCKN 2708 DDTR-HE	X ~	SPK ~	02 ~	0.00~	3109722
LM60SC 12250-47.625R-27	FACE MILL ~	250.00	12	47.63	160.00	80.00	270.80	18.00	C	19.80	27.00~	0.00~	60.0~	~	C ~	LM-SC27 ~	71E01A05B627B ~	SCKN 2708 DDTR-HE	X ~	SPK ~	02 ~	80.00~	3109732
LM60SC 12315-47.625R-27	FACE MILL ~	315.00	12	47.63	220.00	80.00	270.80	18.00	D	26.00	27.00~	0.00~	60.0~	~	C ~	LM-SC27 ~	71E01A05B627B ~	SCKN 2708 DDTR-HE	X ~	SPK ~	02 ~	80.00~	3109733
