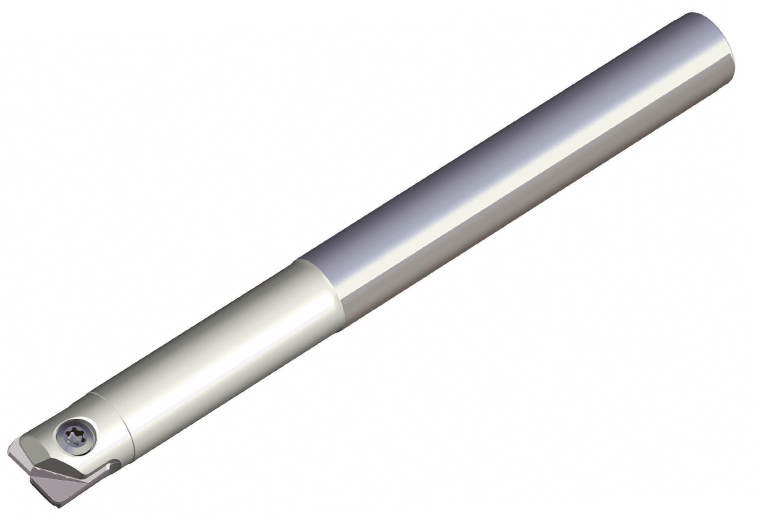

TNFR : End mill holders for finishing with corner radius inserts of NFR and cylindrical steel shank

Related tool for : EROH 20-6.0

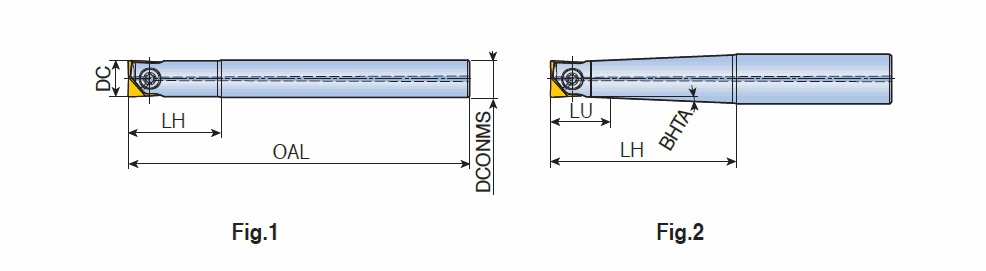

Designation	Tool sty	DC	DCONMS	OAL	LH	LU	BHTA	Fig.	S2	Shank	e		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID		AE	RE	CCTMS	CCFMS	LTA	GICAT
TNFR 060-10M	ENDMILL ~	6.00	10.00	80.00	30.00	15.00	7.5	2	6 ~	C ~	~	0.04	90.0~	~	~	RC ~	FB-06R ~	71E01A05D27A8 ~	NFR 060A-R03	O ~	0.0~	0.30~	ZYL ~	01 ~	40.00~	6169214
TNFR 080-12M	ENDMILL ~	8.00	12.00	130.00	50.00	10.00	2.8	2	8 ~	C ~	3 ~	0.01	90.0~	~	~	RC ~	FB-08R ~	71E01A05D27A8 ~	NFR 080A-R03	O ~	0.0~	0.30~	ZYL ~	01 ~	85.00~	3110144
TNFR 080-12S	ENDMILL ~	8.00	12.00	100.00	22.00	10.00	9	2	8 ~	C ~	3 ~	0.08	90.0~	~	~	RC ~	FB-08R ~	71E01A05D27A8 ~	NFR 080A-R03	O ~	0.0~	0.30~	ZYL ~	01 ~	55.00~	3110143
TNFR 100-12S	ENDMILL ~	10.00	12.00	110.00	25.00	15.00	5	2	10 ~	C ~	3 ~	0.08	90.0~	~	~	RC ~	FB-10R ~	71E01A05D27A8 ~	NFR 100A-R03	O ~	0.0~	0.30~	ZYL ~	01 ~	65.00~	3109551
TNFR 120-12S	ENDMILL ~	12.00	12.00	110.00	30.00	-		1	12 ~	C ~	3 ~	0.09	90.0~	~	~	RC ~	FB-12R ~	71E01A05D27A8 ~	NFR 120A-R03	O ~	0.0~	0.30~	ZYL ~	01 ~	65.00~	3109553
