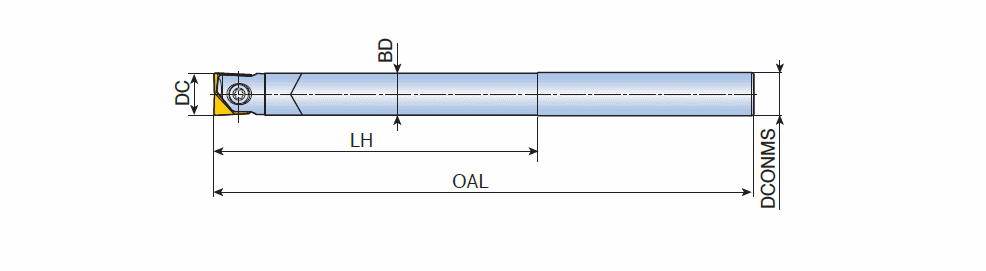

TNFR...-CT-L... : End mill holders for finishing with corner radius inserts of NFR and carbide shank of better rigidity

Designation	Tool sty	DC	DCONMS	BD	OAL	LH	S2	S3	Shank	e		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID		AE	RE	CCTMS	CCFMS	LTA	GICAT
TNFR 060-06-CT-L60	ENDMILL ~	6.00	6.00	5.80	60.00	15.00	6 ~	6 ~	C ~	3 ~	0.02	90.0~	~	~	RC ~	FB-06R ~	71E01A05D27A8 ~	NFR 060A-R03	X ~	0.0~	0.30~	ZYL ~	01 ~	24.00~	6170932
TNFR 060-06-CT-L80	ENDMILL ~	6.00	6.00	5.80	80.00	20.00	6 ~	6 ~	C ~	3 ~	0.03	90.0~	~	~	RC ~	FB-06R ~	71E01A05D27A8 ~	NFR 060A-R03	X ~	0.0~	0.30~	ZYL ~	01 ~	44.00~	6167691
TNFR 080-08-CT-L140	ENDMILL ~	8.00	8.00	7.80	140.00	75.00	8 ~	8 ~	C ~	3 ~	0.09	90.0~	~	~	RC ~	FB-08R ~	71E01A05D27A8 ~	NFR 080A-R03	X ~	0.0~	0.30~	ZYL ~	01 ~	104.00~	3110019
TNFR 100-10-CT-L140	ENDMILL ~	10.00	10.00	9.70	140.00	75.00	10 ~	11 ~	C ~	3 ~	0.14	90.0~	~	~	RC ~	FB-10R ~	71E01A05D27A8 ~	NFR 100A-R03	X ~	0.0~	0.30~	ZYL ~	01 ~	100.00~	3110020
TNFR 120-12-CT-L160	ENDMILL ~	12.00	12.00	11.70	160.00	95.00	12 ~	13 ~	C ~	3 ~	0.23	90.0~	~	~	RC ~	FB-12R ~	71E01A05D27A8 ~	NFR 120A-R03	X ~	0.0~	0.30~	ZYL ~	01 ~	115.00~	3110021
TNFR 160-16-CT-L200	ENDMILL ~	16.00	16.00	15.50	200.00	120.00	16 ~	17 ~	C ~	3 ~	0.52	90.0~	~	~	RC ~	FB-16R ~	71E01A05D27A8 ~	NFR 160A-R03	X ~	0.0~	0.30~	ZYL ~	01 ~	152.00~	3110013
TNFR 200-20-CT-L250	ENDMILL ~	20.00	20.00	19.50	250.00	160.00	20 ~	21 ~	C ~	3 ~	1.02	90.0~	~	~	RC ~	FB-20R ~	71E01A05D27A8 ~	NFR 200A-R03	X ~	0.0~	0.30~	ZYL ~	01 ~	200.00~	3110022
TNFR 250-25-CT-L300	ENDMILL ~	25.00	25.00	24.50	300.00	200.00	25 ~	26 ~	C ~	3 ~	1.93	90.0~	~	~	RC ~	FB-25R ~	71E01A05D27A8 ~	NFR 250A-R03	X ~	0.0~	0.30~	ZYL ~	01 ~	244.00~	3110023
TNFR 300-32-CT-L350	ENDMILL ~	30.00	32.00	29.50	350.00	230.00	30 ~	32 ~	C ~	3 ~	3.44	90.0~	~	~	RC ~	FB-30R ~	71E01A05D27A8 ~	NFR 300A-R05	X ~	0.0~	0.50~	ZYL ~	01 ~	290.00~	6140834
TNFR 320-32-CT-L350	ENDMILL ~	32.00	32.00	31.50	350.00	230.00	32 ~	32 ~	C ~	3 ~	3.69	90.0~	~	~	RC ~	FB-32R ~	71E01A05D27A8 ~	NFR 300A-R05	X ~	0.0~	0.50~	ZYL ~	01 ~	290.00~	6140835
