6N TE90-06/09 : 90° End mills with positive six cutting edges of double- sided 6NGU 06/09 inserts for cost effective machining

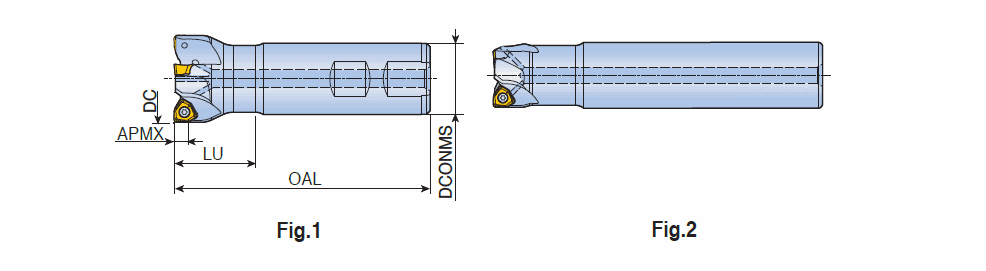

Designation	Tool sty	S1	DC	CICT	DCONMS	OAL	LU	APMX	Fig.		Shank	RMPX		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID	CCTMS	CCFMS	LTA	GICAT
6N TE90-225-W25-06	ENDMILL ~	6.00~	25.00	2	25.00	100.00	30.00	6.20	1	O ~	W	0.00~	0.32	90.0~	~	~	C ~	M2R-6N06 ~	71E01A05D27A8 ~	6NGU 060404R-M	ZYL ~	10 ~	44.00~	3110466
6N TE90-225-25-06-L150	ENDMILL ~	6.00~	25.00	2	25.00	150.00	30.00	6.20	2	O ~	C	0.00~	0.51	90.0~	~	~	C ~	M2R-6N06 ~	71E01A05D27A8 ~	6NGU 060404R-M	ZYL ~	01 ~	94.00~	6162655
6N TE90-232-W32-06	ENDMILL ~	6.00~	32.00	2	32.00	110.00	40.00	6.20	1	O ~	W	0.00~	0.58	90.0~	~	~	C ~	M2R-6N06 ~	71E01A05D27A8 ~	6NGU 060404R-M	ZYL ~	10 ~	50.00~	3110467
6N TE90-232-32-06-L160	ENDMILL ~	6.00~	32.00	2	32.00	160.00	40.00	6.20	2	O ~	C	0.00~	0.89	90.0~	~	~	C ~	M2R-6N06 ~	71E01A05D27A8 ~	6NGU 060404R-M	ZYL ~	01 ~	100.00~	6162656
6N TE90-332-W32-06	ENDMILL ~	6.00~	32.00	3	32.00	110.00	40.00	6.20	1	O ~	W	0.00~	0.58	90.0~	~	~	C ~	M2R-6N06 ~	71E01A05D27A8 ~	6NGU 060404R-M	ZYL ~	10 ~	50.00~	3109506
6N TE90-332-32-06-L160	ENDMILL ~	6.00~	32.00	3	32.00	160.00	40.00	6.20	2	O ~	C	0.00~	0.88	90.0~	~	~	C ~	M2R-6N06 ~	71E01A05D27A8 ~	6NGU 060404R-M	ZYL ~	01 ~	100.00~	3110681
6N TE90-332-32-06-L200	ENDMILL ~	6.00~	32.00	3	32.00	200.00	44.00	6.20	2	O ~	C	0.00~	1.10	90.0~	~	~	C ~	M2R-6N06 ~	71E01A05D27A8 ~	6NGU 060404R-M	ZYL ~	01 ~	140.00~	6170083
6N TE90-340-W32-06	ENDMILL ~	6.00~	40.00	3	32.00	115.00	40.00	6.20	1	O ~	W	0.00~	0.67	90.0~	~	~	C ~	M2R-6N06 ~	71E01A05D27A8 ~	6NGU 060404R-M	ZYL ~	10 ~	55.00~	3110468
6N TE90-340-32-06-L200	ENDMILL ~	6.00~	40.00	3	32.00	200.00	40.00	6.20	2	O ~	C	0.00~	1.18	90.0~	~	~	C ~	M2R-6N06 ~	71E01A05D27A8 ~	6NGU 060404R-M	ZYL ~	01 ~	140.00~	3110682
6N TE90-440-W32-06	ENDMILL ~	6.00~	40.00	4	32.00	115.00	40.00	6.20	1	O ~	W	0.00~	0.67	90.0~	~	~	C ~	M2R-6N06 ~	71E01A05D27A8 ~	6NGU 060404R-M	ZYL ~	10 ~	55.00~	3110469
6N TE90-232-W32-09	ENDMILL ~	9.00~	32.00	2	32.00	110.00	40.00	9.20	1	O ~	W	0.00~	0.60	90.0~	~	~	C ~	M2R-6N09 ~	71E01A05D27A8 ~	6NGU 090508R-M	ZYL ~	10 ~	50.00~	3110914
6N TE90-232-32-09-L160	ENDMILL ~	9.00~	32.00	2	32.00	160.00	60.00	9.20	2	O ~	C	0.00~	0.89	90.0~	~	~	C ~	M2R-6N09 ~	71E01A05D27A8 ~	6NGU 090508R-M	ZYL ~	01 ~	100.00~	3110915
6N TE90-340-W32-09	ENDMILL ~	9.00~	40.00	3	32.00	120.00	40.00	9.20	1	O ~	W	0.00~	0.70	90.0~	~	~	C ~	M2R-6N09 ~	71E01A05D27A8 ~	6NGU 090508R-M	ZYL ~	10 ~	60.00~	3110719
6N TE90-340-32-09-L200	ENDMILL ~	9.00~	40.00	3	32.00	200.00	40.00	9.20	2	O ~	C	0.00~	1.17	90.0~	~	~	C ~	M2R-6N09 ~	71E01A05D27A8 ~	6NGU 090508R-M	ZYL ~	01 ~	140.00~	3110916
6N TE90-440-W32-09	ENDMILL ~	9.00~	40.00	4	32.00	120.00	40.00	9.20	1	O ~	W	0.00~	0.71	90.0~	~	~	C ~	M2R-6N09 ~	71E01A05D27A8 ~	6NGU 090508R-M	ZYL ~	10 ~	60.00~	3110917
