TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills - Shouldering

2S-TE90AP-09 : 90° End mills with high positive two helical cutting edges of APKT 09 inserts

Related tool for : BT50 SRKIN 20X100

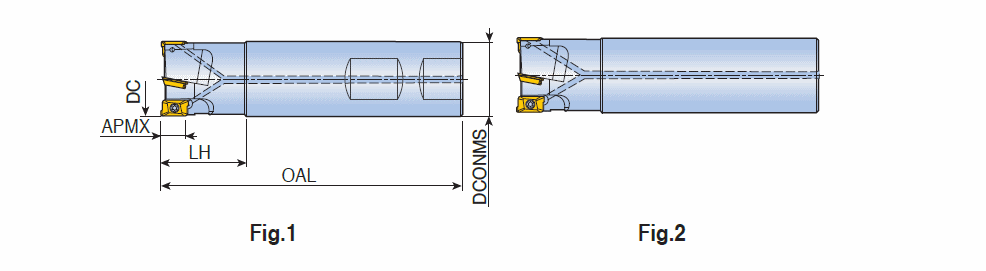

Designation	Tool sty	DC	CICT	DCONMS	OAL	LH	APMX		Fig.	S1	Shank	RMPX	e		KAPR	HAND	Arbor	PD	Insert	DCX	D Inner	Pocket	L1	FF/RN	ClssID	MIID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic	GICODE
2S-TE90AP 220-20-09-L	ENDMILL ~	20.00	2	20.00	170.00	40.00	8.80	X	2	9.00~	C	3.40~	~	0.39	90.0~	~	~	C ~	CM-AP09 ~	20.00~	13.46~	APKT 09T3R-HF ~	0.00~	~	71E01A05D27A8 ~	APKT 09T3 PER-EM	ZYL ~	01 ~	120.00~	3108906		0
2S-TE90AP 221-20-09-L	ENDMILL ~	21.00	2	20.00	200.00	25.00	8.80	X	2	9.00~	C	3.10~	~	0.48	90.0~	~	~	C ~	CM-AP09 ~	21.00~	14.47~	APKT 09T3R-HF ~	0.00~	~	71E01A05D27A8 ~	APKT 09T3 PER-EM	ZYL ~	01 ~	150.00~	6162612		0
