TE90AN-11 : 90° End mills with four helical cutting edges of double-sided inserts AN 11

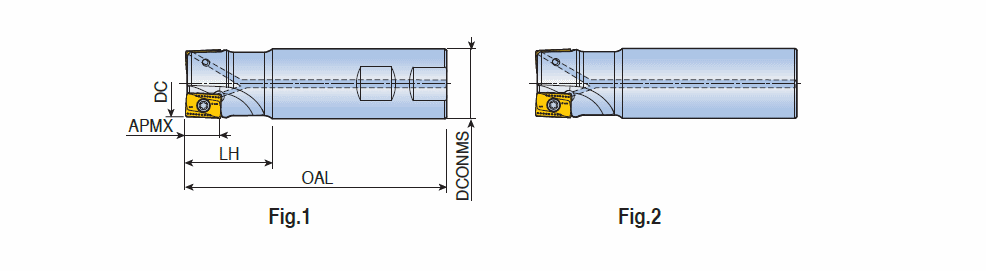

Designation	Tool sty	DC	CICT	DCONMS	OAL	LH	APMX	Fig.	S1	Shank	RMPX		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID		CCTMS	CCFMS	LTA	GICAT
TE90AN 225-W25-11	ENDMILL ~	25.00	2	25.00	100.00	40.00	11.10	1	11.00~	W	1.50~	0.31	90.0~	~	~	C ~	C2M-AN11 ~	71E01A05D27A8 ~	ANHX 110608R-M	O ~	ZYL ~	10 ~	44.00~	3107420
TE90AN 225-24-11-L	ENDMILL ~	25.00	2	24.00	200.00	40.00	11.10	2	11.00~	C	1.50~	0.59	90.0~	~	~	C ~	C2M-AN11 ~	71E01A05D27A8 ~	ANHX 110608R-M	O ~	ZYL ~	01 ~	144.00~	3112513
TE90AN 225-25-11-L	ENDMILL ~	25.00	2	25.00	200.00	40.00	11.10	2	11.00~	C	1.50~	0.65	90.0~	~	~	C ~	C2M-AN11 ~	71E01A05D27A8 ~	ANHX 110608R-M	O ~	ZYL ~	01 ~	144.00~	3112514
TE90AN 226-25-11-L	ENDMILL ~	26.00	2	25.00	200.00	40.00	11.10	2	11.00~	C	1.40~	0.65	90.0~	~	~	C ~	C2M-AN11 ~	71E01A05D27A8 ~	ANHX 110608R-M	O ~	ZYL ~	01 ~	144.00~	3112515
TE90AN 332-W32-11	ENDMILL ~	32.00	3	32.00	110.00	40.00	11.10	1	11.00~	W	1.10~	0.59	90.0~	~	~	C ~	C2M-AN11 ~	71E01A05D27A8 ~	ANHX 110608R-M	O ~	ZYL ~	10 ~	50.00~	6162531
TE90AN 332-32-11-L	ENDMILL ~	32.00	3	32.00	200.00	40.00	11.10	2	11.00~	C	1.10~	1.13	90.0~	~	~	C ~	C2M-AN11 ~	71E01A05D27A8 ~	ANHX 110608R-M	O ~	ZYL ~	01 ~	140.00~	3112516
TE90AN 233-32-11-L	ENDMILL ~	33.00	2	32.00	250.00	40.00	11.10	2	11.00~	C	1.00~	1.44	90.0~	~	~	C ~	C2M-AN11 ~	71E01A05D27A8 ~	ANHX 110608R-M	O ~	ZYL ~	01 ~	190.00~	3112517
TE90AN 333-32-11-L	ENDMILL ~	33.00	3	32.00	200.00	40.00	11.10	2	11.00~	C	1.00~	1.14	90.0~	~	~	C ~	C2M-AN11 ~	71E01A05D27A8 ~	ANHX 110608R-M	O ~	ZYL ~	01 ~	140.00~	3112518
TE90AN 340-32-11-L	ENDMILL ~	40.00	3	32.00	250.00	40.00	11.10	2	11.00~	C	0.80~	1.49	90.0~	~	~	C ~	C2M-AN11 ~	71E01A05D27A8 ~	ANHX 110608R-M	O ~	ZYL ~	01 ~	190.00~	3112520
TE90AN 440-W32-11	ENDMILL ~	40.00	4	32.00	115.00	40.00	11.10	1	11.00~	W	0.80~	0.68	90.0~	~	~	C ~	C2M-AN11 ~	71E01A05D27A8 ~	ANHX 110608R-M	O ~	ZYL ~	10 ~	55.00~	3107488
TE90AN 440-32-11-L	ENDMILL ~	40.00	4	32.00	200.00	40.00	11.10	2	11.00~	C	0.80~	1.08	90.0~	~	~	C ~	C2M-AN11 ~	71E01A05D27A8 ~	ANHX 110608R-M	O ~	ZYL ~	01 ~	140.00~	3112519
