TFM90AN-R-11 : 90° Face mills with 4 helical cutting edges of double-sided inserts AN 11

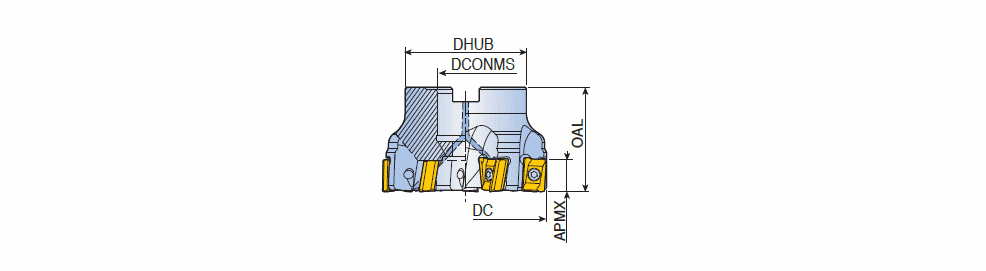

Designation	Tool sty	DC	CICT	DCONMS	DHUB	OAL	APMX		Arbor		S1	RMPX	KAPR	HAND	PD	Insert	Mtg. Ref	ClssID	MIID	CCTMS	CCFMS	LTA	GICAT
TFM90AN 440-16R-11	FACE MILL ~	40.00	4	16.00	38.00	40.00	11.10	O ~	A	0.20	11.00~	0.80~	90.0~	~	C ~	C2M-AN11 ~	SH M8X1.25X30 ~	71E01A05B627B ~	ANHX 110608R-M	FDA ~	02 ~	40.00~	3111202
TFM90AN 450-22R-11	FACE MILL ~	50.00	4	22.00	45.00	40.00	11.10	O ~	A	0.29	11.00~	0.60~	90.0~	~	C ~	C2M-AN11 ~	SH M10X1.5X30 ~	71E01A05B627B ~	ANHX 110608R-M	FDA ~	02 ~	40.00~	3111203
TFM90AN 650-22R-11	FACE MILL ~	50.00	6	22.00	45.00	40.00	11.10	O ~	A	0.29	11.00~	0.60~	90.0~	~	RC ~	C2M-AN11 ~	SH M10X1.5X30 ~	71E01A05B627B ~	ANHX 110608R-M	FDA ~	02 ~	40.00~	3107421
TFM90AN 563-22R-11	FACE MILL ~	63.00	5	22.00	47.00	40.00	11.10	O ~	A	0.47	11.00~	0.40~	90.0~	~	C ~	C2M-AN11 ~	SH M10X1.5X30 ~	71E01A05B627B ~	ANHX 110608R-M	FDA ~	02 ~	40.00~	3111204
TFM90AN 763-22R-11	FACE MILL ~	63.00	7	22.00	47.00	40.00	11.10	O ~	A	0.51	11.00~	0.40~	90.0~	~	RC ~	C2M-AN11 ~	SH M10X1.5X30 ~	71E01A05B627B ~	ANHX 110608R-M	FDA ~	02 ~	40.00~	3107422
TFM90AN 1080-27R-11	FACE MILL ~	80.00	10	27.00	58.00	50.00	11.10	O ~	A	1.02	11.00~	0.30~	90.0~	~	RC ~	C2M-AN11 ~	SH M12X1.75X35 ~	71E01A05B627B ~	ANHX 110608R-M	FDA ~	02 ~	50.00~	3111205
TFM90AN 880-25.4R-11	FACE MILL ~	80.00	8	25.40	70.00	50.00	11.10	O ~	A	1.20	11.00~	0.30~	90.0~	~	C ~	C2M-AN11 ~	SH M12X1.75X35 ~	71E01A05B627B ~	ANHX 110608R-M	FDA ~	02 ~	50.00~	3112522
TFM90AN 880-27R-11	FACE MILL ~	80.00	8	27.00	58.00	50.00	11.10	O ~	A	1.02	11.00~	0.30~	90.0~	~	C ~	C2M-AN11 ~	SH M12X1.75X35 ~	71E01A05B627B ~	ANHX 110608R-M	FDA ~	02 ~	50.00~	6162532
TFM90AN 12100-32R-11	FACE MILL ~	100.00	12	32.00	85.00	50.00	11.10	O ~	A	1.89	11.00~	0.20~	90.0~	~	RC ~	C2M-AN11 ~	SH M16X2.0X35 ~	71E01A05B627B ~	ANHX 110608R-M	FDA ~	02 ~	50.00~	3111207
TFM90AN 9100-32R-11	FACE MILL ~	100.00	9	32.00	85.00	50.00	11.10	O ~	A	1.87	11.00~	0.20~	90.0~	~	C ~	C2M-AN11 ~	SH M16X2.0X35 ~	71E01A05B627B ~	ANHX 110608R-M	FDA ~	02 ~	50.00~	3111206
TFM90AN 10125-40R-11	FACE MILL ~	125.00	10	40.00	85.00	63.00	11.10	O ~	A	3.19	11.00~	0.20~	90.0~	~	C ~	C2M-AN11 ~	SH M20X2.5X40 ~	71E01A05B627B ~	ANHX 110608R-M	FDA ~	02 ~	63.00~	3111208
TFM90AN 14125-40R-11	FACE MILL ~	125.00	14	40.00	85.00	63.00	11.10	O ~	A	3.44	11.00~	0.20~	90.0~	~	RC ~	C2M-AN11 ~	SH M20X2.5X40 ~	71E01A05B627B ~	ANHX 110608R-M	FDA ~	02 ~	63.00~	3111209

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
