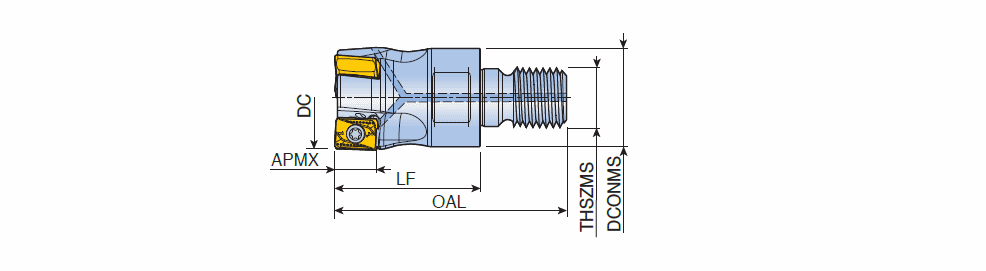

TE90AN-M-16 : 90° Modular end mills with T-FLEXTEC adaptation & four helical cutting edges of double-sided inserts AN 16

Designation	Tool sty	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX	S1	RMPX		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID		CCTMS	CCFMS	LTA	GICAT	GIREM	giic	GICODE
TE90AN 232-M16-16	MODULAR ~	32.00	2	29.00	43.00	68.00	M16	15.00	16.00~	1.20~	0.24	90.0~	~	~	C ~	C2M-AN16 ~	71E01A05D27A8 ~	ANHX 160708R-M	O ~	SAI ~	02 ~	43.00~	3108148		0
TE90AN 340-M16-16	MODULAR ~	40.00	3	29.00	43.00	68.00	M16	15.00	16.00~	0.90~	0.31	90.0~	~	~	C ~	C2M-AN16 ~	71E01A05D27A8 ~	ANHX 160708R-M	O ~	SAI ~	02 ~	43.00~	3108149		0
