Home Page > Tooling System > ISO 26623-1 C-ADAPTER > C-FM

Tooling System
Main Application

ISO 26623-1 C-ADAPTER
Sub Application

More Info Related Tool Accessories

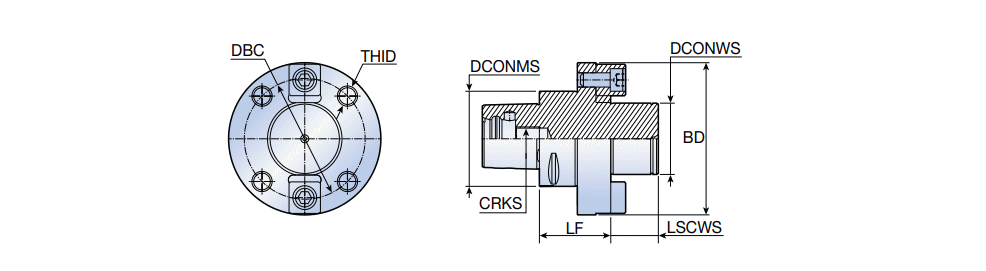

C-FM : DIN 6357 Face mill arbors with C-ADAPTER ISO 26623-1 taper shanks

Designation	DCONMS	DCONWS	BD	DBC	LF	LSCWS	THID	CRKS		S1	ClssID	LTA	CCTWS	CCFWS	GICAT	GIREM	giic	GICODE
C8 FM60X60	80	60.00	128.00	101.60	20.00	20.00	16	20	5.22	8.00~	71EAD3871D313 ~	100.00~	SRK ~	02 ~	4656251		0
