TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills - Step down machining

HFM 2 (2 Flute) : High feed type solid carbide end mills with 2 flute for roughing

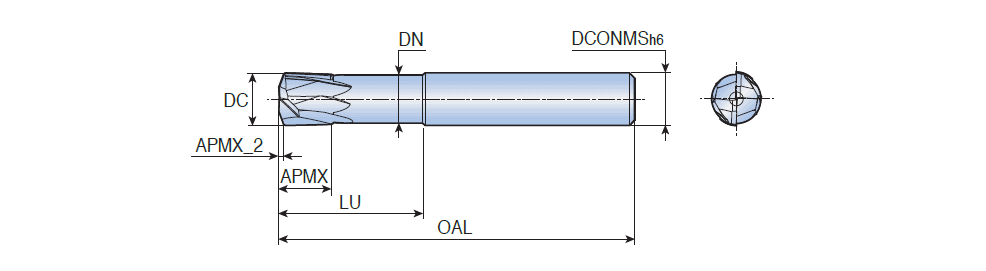

Designation	Tool sty	DC	APMX	APMX_2	LU	OAL	DN	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	NOF		ClssID	CCTMS	CCFMS	LTA	GICAT	giic	Grade
HFM 2040	SOLID TYPE ~	4.00	4.00	0.30	10.0	47.00	3.90	6.00	10.0~	C ~	5.00~	0.200	0.400	2~	0.02~	71E01A05D27A8 ~	ZYL ~	01 ~	15.00~	6112670	1	TT5515
HFM 2060	SOLID TYPE ~	6.00	6.00	0.50	16.0	52.00	5.50	6.00	10.0~	C ~	5.00~	0.300	0.600	2~	0.02~	71E01A05D27A8 ~	ZYL ~	01 ~	17.30~	6112671	1	TT5515
HFM 2080	SOLID TYPE ~	8.00	8.00	0.75	22.0	60.00	7.30	8.00	10.0~	C ~	5.00~	0.400	0.700	2~	0.04~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6112672	1	TT5515
HFM 2100	SOLID TYPE ~	10.00	10.00	1.00	28.0	68.00	9.20	10.00	10.0~	C ~	5.00~	0.500	0.900	2~	0.07~	71E01A05D27A8 ~	ZYL ~	01 ~	29.40~	6112673	1	TT5515
HFM 2120	SOLID TYPE ~	12.00	12.00	1.10	33.0	76.00	11.00	12.00	10.0~	C ~	5.00~	0.500	1.000	2~	0.11~	71E01A05D27A8 ~	ZYL ~	01 ~	34.50~	6112674	1	TT5515
