TPM-PL09 : Plunging mills with four helical cutting edges of PLNG 09 inserts & straight shanks for rough plunging & facing

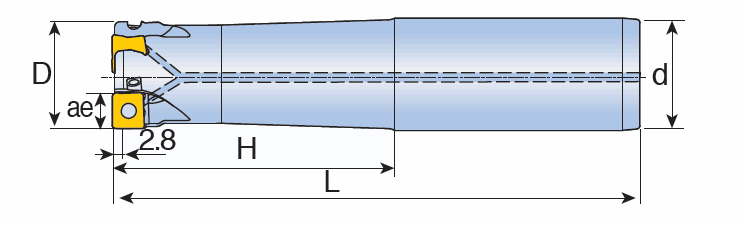

Designation	Tool sty	D	Z	d	L	H	ae	ap	S1	Shank		K	R/L	Rd	Arbor	PD	Insert	ClssID	MIID		CCTMS	CCFMS	LTA	GICAT
TPM 225-25-PL09	ENDMILL ~	25.00	2	25.00	200.00	120.00	9	2.80~	9.00~	C ~	0.64	90.0~	~	0.00~	~	C ~	C2P-PL09 ~	71E01A05D27A8 ~	PLNG 090408R-M	O ~	ZYL ~	01 ~	144.00~	3112439
TPM 226-25-PL09	ENDMILL ~	26.00	2	25.00	200.00	50.00	9	2.80~	9.00~	C ~	0.27	90.0~	~	0.00~	~	C ~	C2P-PL09 ~	71E01A05D27A8 ~	PLNG 090408R-M	O ~	ZYL ~	01 ~	144.00~	3112440
TPM 330-32-PL09	ENDMILL ~	30.00	3	32.00	250.00	150.00	9	2.80~	9.00~	C ~	1.26	90.0~	~	0.00~	~	RC ~	C2P-PL09 ~	71E01A05D27A8 ~	PLNG 090408R-M	O ~	ZYL ~	01 ~	190.00~	3112441
TPM 332-32-PL09	ENDMILL ~	32.00	3	32.00	250.00	150.00	9	2.80~	9.00~	C ~	1.36	90.0~	~	0.00~	~	RC ~	C2P-PL09 ~	71E01A05D27A8 ~	PLNG 090408R-M	O ~	ZYL ~	01 ~	190.00~	3112442
TPM 333-32-PL09	ENDMILL ~	33.00	3	32.00	250.00	50.00	9	2.80~	9.00~	C ~	1.47	90.0~	~	0.00~	~	RC ~	C2P-PL09 ~	71E01A05D27A8 ~	PLNG 090408R-M	O ~	ZYL ~	01 ~	190.00~	3112443
TPM 440-32-PL09	ENDMILL ~	40.00	4	32.00	250.00	50.00	9	2.80~	9.00~	C ~	1.52	90.0~	~	0.00~	~	RF ~	C2P-PL09 ~	71E01A05D27A8 ~	PLNG 090408R-M	O ~	ZYL ~	01 ~	190.00~	3112444
