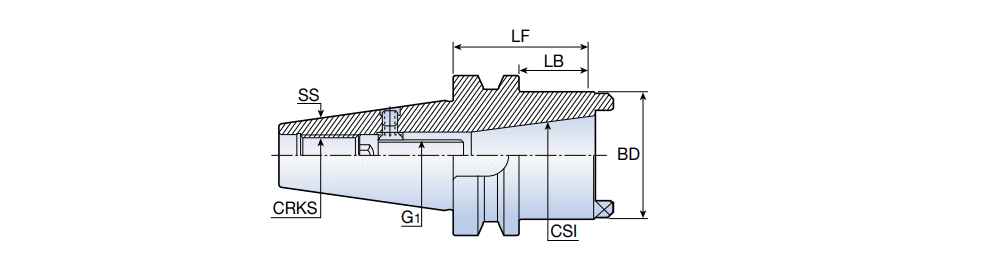

BT-AD : Adapters for DIN 2080 or DIN 69871/A & BT MAS-403 shanks with BT MAS-403 form A taper shanks

Designation	SS	CSI	BD	LF	LB	CRKS	G1		d2	ClssID	LTA	GICAT	GIREM	giic	GICODE
BT50 AD BT/SK40	50	DIN 2080	63.00	70.00	32.0	M24	M16	4.05	0.00~	71EAD3871D313 ~	75.00~	4601828		0
BT50 AD 40	50	DIN 69871/A,BT MAS	66.00	75.00	37.0	M24	M16	3.85	0.00~	71EAD3871D313 ~	70.00~	4601826		0
