TaeguTec Cutting Tools - Metal Working Tools - Tooling System - BT MAS 403

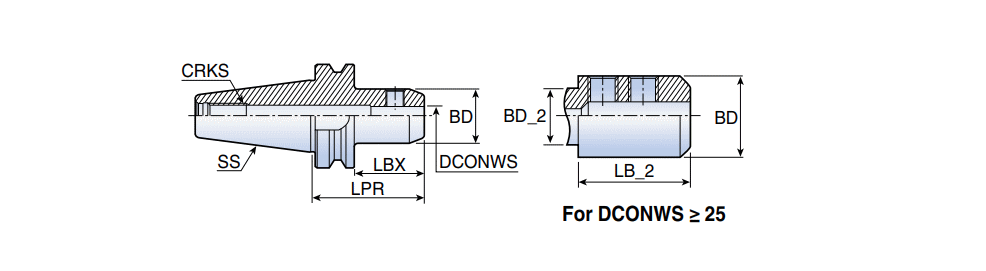

BT-EM (Endmill Holer) : DIN6359 / DIN 1835 form B weldon end mill holders with BT MAS-403 form AD taper shanks

Related holder for : 3P TE90-632-W25-06

Designation	SS	DCONWS	BD	BD_2	LPR	LBX	LB	CRKS		Shank	ClssID	LTA	CCTWS	CCFWS	LS	GICAT	GIREM	giic	GICODE
BT40 EM 25X105	40	25.00	65.00	61.00	105.00	78.0	68.00	M16	2.63	W ~	71EAD3871D313 ~	105.00~	ZYL ~	10 ~	65.4~	4601602		0
BT50 EM 25X115	50	25.00	65.00	-	115.00	77.0	-	M24	5.29	W ~	71EAD3871D313 ~	115.00~	ZYL ~	10 ~	101.8~	4601612		0

Add B for coolant through flange
