BT-EM (Short Endmill Holer) : Short Weldon DIN6359 / DIN 1835 form B end mill holders with BT MAS-403 form AD taper shanks


 IT_N5  IT_SURFACE HARDNESS 58~60HRC  IT_RUN-OUT A0.005  IT_TAPER SHANK GRADE

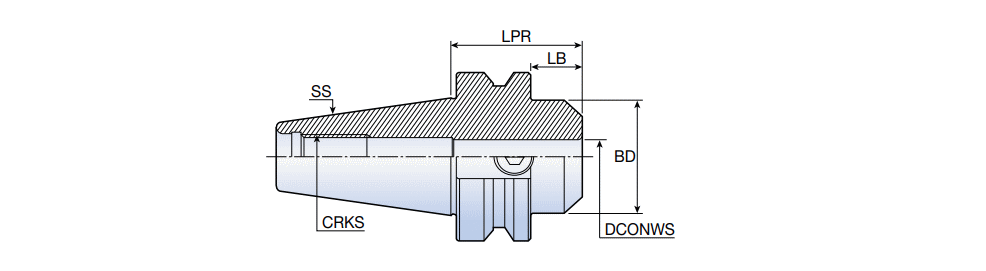

  DesignationSS DCONWS BD LPR LB CRKS Shank ClssID LTA CCTWS CCFWS LS GICATGIREMgiicGICODE
  BT40 EM 10X45 40 10.0035.0045.0018.0M16 1.11W ~71EAD3871D313 ~45.00~ZYL ~10 ~65.4~4601579 0
  BT40 EM 12X45 40 12.0042.0045.0018.0M16 1.15W ~71EAD3871D313 ~45.00~ZYL ~10 ~65.4~4601580 0
  BT40 EM 14X45 40 14.0044.0045.0018.0M16 2.30W ~71EAD3871D313 ~45.00~ZYL ~10 ~65.4~4601581 0
  BT40 EM 16X45 40 16.0048.0045.0018.0M16 1.17W ~71EAD3871D313 ~45.00~ZYL ~10 ~65.4~4601582 0
  BT40 EM 20X45 40 20.0052.0045.0018.0M16 1.15W ~71EAD3871D313 ~45.00~ZYL ~10 ~65.4~4601584 0
  BT40 EM 25X45 40 25.0063.0045.00-M16 1.18W ~71EAD3871D313 ~45.00~ZYL ~10 ~65.4~4601585 0
Add B for coolant through flange
