TaeguTec Cutting Tools - Metal Working Tools - Tooling System -

BT-MT : DIN 6383 / DIN 228-2 form D tang Morse taper adapter with BT MAS-403 form A shanks

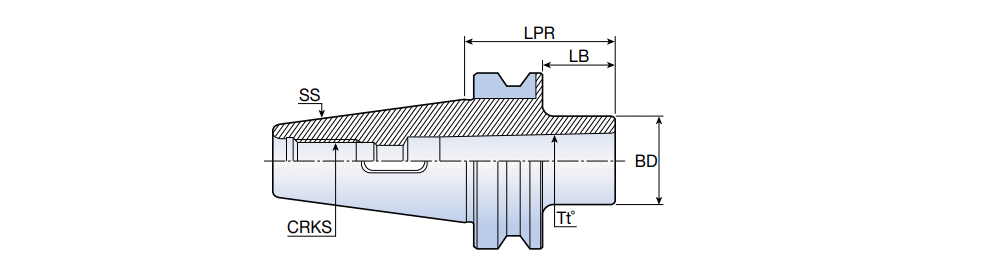

Designation	SS	Tt	BD	LPR	LB	CRKS		d2	ClssID	LTA	LS	GICAT
BT30 MT1X 45	30	MT1	25.00	45.00	23.0	M12	0.43	0.00~	71EAD3871D313 ~	45.00~	48.4~	4601873
BT40 MT1X 45	40	MT1	25.00	45.00	25.0	M16	1.00	0.00~	71EAD3871D313 ~	45.00~	65.4~	4601875
BT40 MT1X120	40	MT1	25.00	120.00	25.0	M16	1.28	0.00~	71EAD3871D313 ~	120.00~	65.4~	4601876
BT50 MT1X 45	50	MT1	25.00	45.00	7.0	M24	3.59	0.00~	71EAD3871D313 ~	45.00~	101.8~	4601882
BT50 MT1X120	50	MT1	25.00	120.00	82.0	M24	3.94	0.00~	71EAD3871D313 ~	120.00~	101.8~	4601883
BT30 MT2X 60	30	MT2	32.00	60.00	38.0	M12	0.51	0.00~	71EAD3871D313 ~	60.00~	48.4~	4601874
BT40 MT2X 60	40	MT2	32.00	60.00	32.0	M16	0.50	0.00~	71EAD3871D313 ~	60.00~	65.4~	4601877
BT40 MT2X120	40	MT2	32.00	120.00	32.0	M16	1.43	0.00~	71EAD3871D313 ~	120.00~	65.4~	4601878
BT50 MT2X 45	50	MT2	32.00	45.00	7.0	M24	3.50	0.00~	71EAD3871D313 ~	45.00~	101.8~	4601885
BT50 MT2X135	50	MT2	32.00	135.00	97.0	M24	4.14	0.00~	71EAD3871D313 ~	135.00~	101.8~	4601886
BT50 MT2X180	50	MT2	32.00	180.00	142.0	M24	4.40	0.00~	71EAD3871D313 ~	180.00~	101.8~	4601887
BT40 MT3 X75	40	MT3	40.00	75.00	40.0	M16	1.15	0.00~	71EAD3871D313 ~	75.00~	65.4~	4601879
BT40 MT3X139	40	MT3	40.00	139.00	40.0	M16	1.78	0.00~	71EAD3871D313 ~	139.00~	65.4~	4601880
BT50 MT3X 45	50	MT3	40.00	45.00	7.0	M24	3.49	0.00~	71EAD3871D313 ~	45.00~	101.8~	4601888
BT50 MT3X150	50	MT3	40.00	150.00	112.0	M24	4.46	0.00~	71EAD3871D313 ~	150.00~	101.8~	4601889
BT50 MT3X180	50	MT3	40.00	180.00	142.0	M24	4.79	0.00~	71EAD3871D313 ~	182.20~	101.8~	4601890
BT40 MT4 X95	40	MT4	50.00	95.00	50.0	M16	1.44	0.00~	71EAD3871D313 ~	95.00~	101.8~	4601881
BT50 MT4X 75	50	MT4	50.00	75.00	37.0	M24	3.64	0.00~	71EAD3871D313 ~	75.00~	101.8~	4601891
BT50 MT4X180	50	MT4	50.00	180.00	142.0	M24	5.20	0.00~	71EAD3871D313 ~	180.00~	101.8~	4601892
BT50 MT5X105	50	MT5	70.00	105.00	67.0	M24	4.17	0.00~	71EAD3871D313 ~	105.00~	101.8~	4601893
