TaeguTec Cutting Tools - Metal Working Tools - Tooling System - BT MAS 403

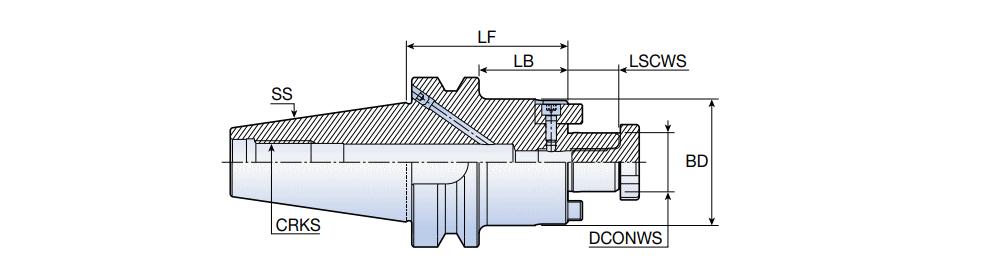

BT-SEM : ISO 3937 Face mill arbors with BT MAS-403 form AD taper shanks and coolant hole

Designation	SS	DCONWS	BD	LF	LB	LSCWS	CRKS		ClssID	LTA	CCTWS	CCFWS	LS	GICAT
BT30 SEM 16X50	30	16.00	38.00	50.00	28.0	17.00	M12	0.62	71EAD3871D313 ~	50.00~	FDA ~	02 ~	48.4~	4601689
BT30 SEM 22X50	30	22.00	47.00	50.00	28.0	19.00	M12	0.77	71EAD3871D313 ~	50.00~	FDA ~	02 ~	48.4~	4601690
BT30 SEM 27X50	30	27.00	58.00	50.00	18.0	21.00	M12	0.88	71EAD3871D313 ~	50.00~	FDA ~	02 ~	48.4~	4601691
BT40 SEM 16X120	40	16.00	38.00	120.00	93.0	17.00	M16	1.82	71EAD3871D313 ~	120.00~	FDA ~	02 ~	65.4~	4601693
BT40 SEM 16X60	40	16.00	38.00	60.00	33.0	17.00	M16	1.29	71EAD3871D313 ~	60.00~	FDA ~	02 ~	65.4~	4601692
BT40 SEM 22X120	40	22.00	47.00	120.00	93.0	19.00	M16	2.38	71EAD3871D313 ~	120.00~	FDA ~	02 ~	65.4~	4601695
BT40 SEM 22X60	40	22.00	47.00	60.00	33.0	19.00	M16	1.45	71EAD3871D313 ~	60.00~	FDA ~	02 ~	65.4~	4601694
BT40 SEM 27X105	40	27.00	58.00	105.00	78.0	21.00	M16	2.62	71EAD3871D313 ~	105.00~	FDA ~	02 ~	65.4~	4601697
BT40 SEM 27X45	40	27.00	58.00	45.00	18.0	21.00	M16	1.39	71EAD3871D313 ~	45.00~	FDA ~	02 ~	65.4~	4601696
BT40 SEM 32X60	40	32.00	65.00	60.00	23.0	24.00	M16	1.88	71EAD3871D313 ~	60.00~	FDA ~	02 ~	65.4~	4601698
BT40 SEM 32X75	40	32.00	65.00	75.00	36.0	24.00	M16	2.26	71EAD3871D313 ~	75.00~	FDA ~	02 ~	65.4~	4601699
BT40 SEM 40X60	40	40.00	82.00	60.00	23.0	27.00	M16	2.25	71EAD3871D313 ~	60.00~	FDA ~	02 ~	65.4~	4601700
BT40 SEM 40X75	40	40.00	82.00	75.00	38.0	27.00	M16	3.10	71EAD3871D313 ~	75.00~	FDA ~	02 ~	65.4~	4601701
BT50 SEM 16X120	50	16.00	38.00	120.00	82.0	17.00	M24	4.40	71EAD3871D313 ~	120.00~	FDA ~	02 ~	101.8~	4601703
BT50 SEM 16X75	50	16.00	38.00	75.00	37.0	17.00	M24	3.86	71EAD3871D313 ~	75.00~	FDA ~	02 ~	101.8~	4601702
BT50 SEM 22X120	50	22.00	47.00	120.00	82.0	19.00	M24	4.63	71EAD3871D313 ~	120.00~	FDA ~	02 ~	101.8~	4601705
BT50 SEM 22X50X220	50	22.00	50.00	220.00	182.0	19.00	M24	6.52	71EAD3871D313 ~	220.00~	FDA ~	02 ~	101.8~	4604719
BT50 SEM 22X64X320	50	22.00	64.00	320.00	282.0	19.00	M24	10.51	71EAD3871D313 ~	320.00~	FDA ~	02 ~	101.8~	4604720
BT50 SEM 22X75	50	22.00	47.00	75.00	37.0	19.00	M24	4.10	71EAD3871D313 ~	75.00~	FDA ~	02 ~	101.8~	4601704
BT50 SEM 27X105	50	27.00	58.00	105.00	67.0	21.00	M24	5.08	71EAD3871D313 ~	105.00~	FDA ~	02 ~	101.8~	4601707
BT50 SEM 27X60	50	27.00	58.00	60.00	22.0	21.00	M24	4.15	71EAD3871D313 ~	60.00~	FDA ~	02 ~	101.8~	4601706
BT50 SEM 32X48	50	32.00	66.00	48.00	10.0	24.00	M24	3.96	71EAD3871D313 ~	48.00~	FDA ~	02 ~	101.8~	4601708
BT50 SEM 32X75	50	32.00	66.00	75.00	37.0	24.00	M24	4.65	71EAD3871D313 ~	75.00~	FDA ~	02 ~	101.8~	4601709
BT50 SEM 40X48	50	40.00	82.00	48.00	10.0	27.00	M24	4.27	71EAD3871D313 ~	48.00~	FDA ~	02 ~	101.8~	4601710
BT50 SEM 40X75	50	40.00	82.00	75.00	37.0	27.00	M24	5.33	71EAD3871D313 ~	75.00~	FDA ~	02 ~	101.8~	4601711

Wrench not included
