BT-SEMC : DIN 6358 Combi shell mill arbors with BT MAS-403 form AD taper shanks and coolant hole

Related holder for : TFMRX 6100-31.75R-16

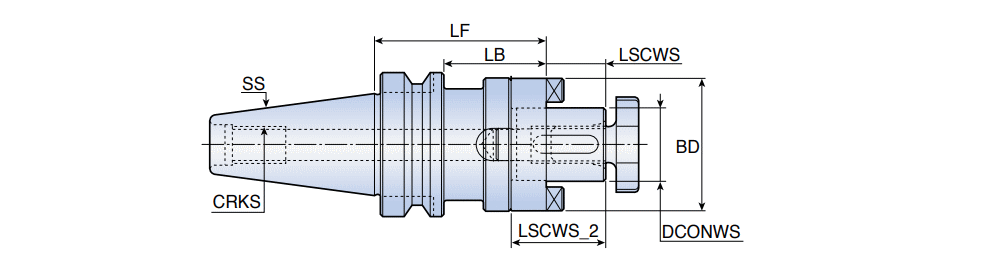

Designation	SS	DCONWS	BD	LF	LB	LSCWS	LSCWS_2	CRKS	WT	d2	ClssID	LTA	CCTWS	CCFWS	LS	GICAT
BT40 SEMC 32X 60	40	32.00	58.00	60.00	33.0	24.00	38.00	M24	1.51	0.00~	71EAD3871D313 ~	46.00~	FDA ~	02 ~	65.4~	6308526
BT40 SEMC 32X100	40	32.00	58.00	100.00	73.0	24.00	38.00	M24	2.26	0.00~	71EAD3871D313 ~	86.00~	FDA ~	02 ~	65.4~	4601773
BT50 SEMC 32X 78	50	32.00	58.00	78.00	40.0	24.00	38.00	M16	10.00	0.00~	71EAD3871D313 ~	64.00~	FDA ~	02 ~	101.8~	4601784
BT50 SEMC 32X100	50	32.00	58.00	100.00	62.0	24.00	38.00	M16	4.60	0.00~	71EAD3871D313 ~	86.00~	FDA ~	02 ~	101.8~	4601785
BT50 SEMC 32X150	50	32.00	58.00	150.00	112.0	24.00	38.00	M16	5.82	0.00~	71EAD3871D313 ~	136.00~	FDA ~	02 ~	101.8~	4601786

Wrench not included
