TaeguTec Cutting Tools - Metal Working Tools - Tooling System -

BT-FMA : Face mill arbors for inch bores of cutters with BT MAS-403 form A taper shanks

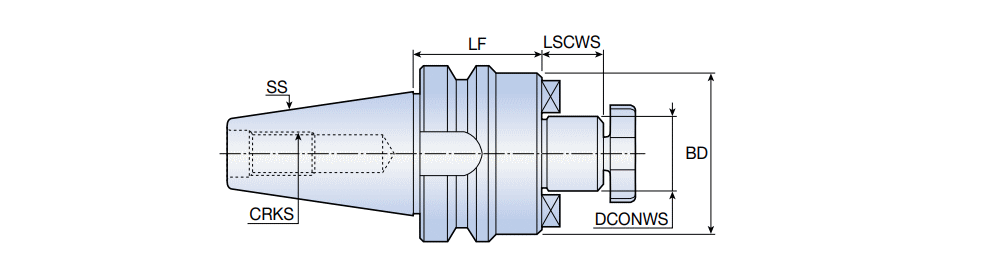

Designation	SS	DCONWS	BD	LF	LSCWS	CRKS	Mtg. Ref	d2	ClssID	LTA	CCTWS	CCFWS	LS	GICAT
BT40 FMA 25.4-90L	40	25.40	50.00	90.00	22.0	M16	MBA M12	0.00~	71EAD3871D313 ~	90.00~	FDA ~	02 ~	65.4~	4656551
BT40 FMA 31.75-75L	40	31.75	60.00	75.00	30.0	M16	MBA M16	0.00~	71EAD3871D313 ~	75.00~	FDA ~	02 ~	65.4~	4656553
BT40 FMA 38.1-60L	40	38.10	78.00	60.00	34.0	M16	MBA M20	0.00~	71EAD3871D313 ~	60.00~	FDA ~	02 ~	65.4~	4656554
BT50 FMA 25.4-150L	50	25.40	50.00	150.00	22.0	M24	MBA M12	0.00~	71EAD3871D313 ~	150.00~	FDA ~	02 ~	101.8~	4655439
BT50 FMA 25.4-45L	50	25.40	50.00	45.00	22.0	M24	MBA M12	0.00~	71EAD3871D313 ~	45.00~	FDA ~	02 ~	101.8~	4656555
BT50 FMA 25.4-90L	50	25.40	50.00	90.00	22.0	M24	MBA M12	0.00~	71EAD3871D313 ~	90.00~	FDA ~	02 ~	101.8~	4656556
BT50 FMA 31.75-45L	50	31.75	60.00	45.00	30.0	M24	MBA M16	0.00~	71EAD3871D313 ~	45.00~	FDA ~	02 ~	101.8~	4656557
BT50 FMA 38.1-45L	50	38.10	80.00	45.00	34.0	M24	MBA M20	0.00~	71EAD3871D313 ~	45.00~	FDA ~	02 ~	101.8~	4656559
BT50 FMA 38.1-75L	50	38.10	80.00	75.00	34.0	M24	MBA M20	0.00~	71EAD3871D313 ~	75.00~	FDA ~	02 ~	101.8~	4656560
BT50 FMA 47.625-75L	50	47.63	128.57	75.00	38.0	M24	SH M16X2.0X40	0.00~	71EAD3871D313 ~	75.00~	FDA ~	02 ~	101.8~	4656562
BT50 FMA 50.8-45L	50	50.80	98.00	45.00	36.0	M24	MBA M24	0.00~	71EAD3871D313 ~	45.00~	FDA ~	02 ~	101.8~	4656561
BT50 FMA 50.8-75L	50	50.80	98.00	75.00	36.0	M24	MBA M24	0.00~	71EAD3871D313 ~	75.00~	FDA ~	02 ~	101.8~	4655445
