Tooling System
Main Application
DIN 2080
Sub Application
DIN2080-SEMC : DIN 6358 Combi shell mill arbors with DIN 2080 taper shanks


 IT_N5  IT_SURFACE HARDNESS 58~60HRC  IT_RUN-OUT A0.005  IT_TAPER SHANK GRADE
Related holder for : TFM90AP 563-22R-12

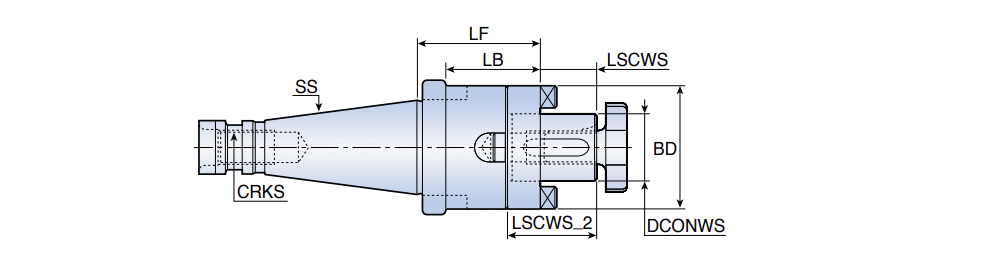

  DesignationSS DCONWS BD LF LB LSCWS LSCWS_2 CRKS d2 ClssID LTA CCTWS CCFWS GICATGIREMgiicGICODE
  DIN2080 30 SEMC 22X 35 30 22.0040.0035.0025.419.0031.00M12 0.470.00~ ~23.00~FDA ~02 ~4601794 0
  DIN2080 40 SEMC 22X 52 40 22.0040.0052.0040.419.0031.00M16 1.010.00~71EAD3871D313 ~40.00~FDA ~02 ~4601798 0
  DIN2080 50 SEMC 22X 55 50 22.0040.0055.0039.819.0031.00M24 3.290.00~71EAD3871D313 ~43.00~FDA ~02 ~4601803 0
