TaeguTec Cutting Tools - Metal Working Tools - DIN69871-EM (Endmill Holer)

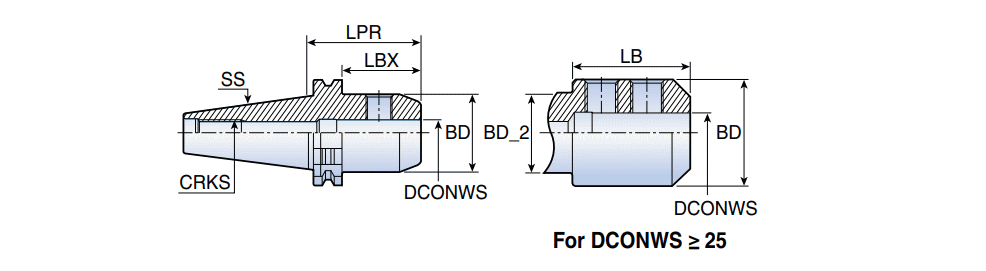

DIN69871-EM (Endmill Holer) : DIN6359 / DIN 1835 form B Weldon end mill holders with DIN 69871 form AD/B taper shanks

Designation	SS	DCONWS	BD	BD_2	LPR	LBX	LB	CRKS		S1	Shank	ClssID	LH_2	LTA	CCTWS	CCFWS	LS	GICAT
DIN69871 30 EM 6X50	30	6.00	25.00	-	50.00	30.9	-	M12	0.45	0.00~	W ~	71EAD3871D313 ~	0.0~	50.00~	ZYL ~	10 ~	47.8~	4601527
DIN69871 30 EM 8X50	30	8.00	28.00	-	50.00	30.9	-	M12	0.49	0.00~	W ~	71EAD3871D313 ~	0.0~	50.00~	ZYL ~	10 ~	47.8~	4601528
DIN69871 30 EM 18X72	30	18.00	48.00	-	72.00	43.9	-	M12	0.96	0.00~	W ~	71EAD3871D313 ~	0.0~	72.00~	ZYL ~	10 ~	47.8~	4601533
DIN69871 30 EM20X 72	30	20.00	50.00	-	72.00	52.9	-	M12	0.96	0.00~	W ~	71EAD3871D313 ~	0.0~	72.00~	ZYL ~	10 ~	47.8~	4601534
DIN69871 40 EM 6X50	40	6.00	52.00	-	50.00	52.9	-	M16	0.89	0.00~	W ~	71EAD3871D313 ~	0.0~	50.00~	ZYL ~	10 ~	68.4~	4601535
DIN69871 40 EM 8X50	40	8.00	25.00	-	50.00	30.9	-	M16	0.91	0.00~	W ~	71EAD3871D313 ~	0.0~	50.00~	ZYL ~	10 ~	68.4~	4601536
DIN69871 40 EM 10X50	40	10.00	28.00	-	50.00	30.9	-	M16	0.96	0.00~	W ~	71EAD3871D313 ~	0.0~	50.00~	ZYL ~	10 ~	68.4~	4601537
DIN69871 40 EM 12X50	40	12.00	35.00	-	50.00	30.9	-	M16	1.04	0.00~	W ~	71EAD3871D313 ~	0.0~	50.00~	ZYL ~	10 ~	68.4~	4601538
DIN69871 40 EM 14X63	40	14.00	42.00	-	63.00	30.9	-	M16	1.20	0.00~	W ~	71EAD3871D313 ~	0.0~	63.00~	ZYL ~	10 ~	68.4~	4601539
DIN69871 40 EM 16X63	40	16.00	48.00	-	63.00	43.9	-	M16	1.20	0.00~	W ~	71EAD3871D313 ~	0.0~	63.00~	ZYL ~	10 ~	68.4~	4601540
DIN69871 40 EM 18X63	40	18.00	50.00	-	63.00	43.9	-	M16	1.29	0.00~	W ~	71EAD3871D313 ~	0.0~	63.00~	ZYL ~	10 ~	68.4~	4601541
DIN69871 40 EM 20X63	40	20.00	52.00	-	63.00	43.9	-	M16	1.26	0.00~	W ~	71EAD3871D313 ~	0.0~	63.00~	ZYL ~	10 ~	68.4~	4601542
DIN69871 40 EM 25X100	40	25.00	5.00	49.00	100.00	80.9	65.00	M16	2.23	0.00~	W ~	71EAD3871D313 ~	0.0~	100.00~	ZYL ~	10 ~	68.4~	4601543
DIN69871 40 EM 32X100	40	32.00	71.00	49.00	100.00	80.9	65.00	M16	2.42	0.00~	W ~	71EAD3871D313 ~	0.0~	100.00~	ZYL ~	10 ~	68.4~	4601544
DIN69871 50 EM 8X63	50	8.00	28.00	-	63.00	43.9	-	M24	2.73	0.00~	W ~	71EAD3871D313 ~	0.0~	63.00~	ZYL ~	10 ~	101.8~	4601546
DIN69871 50 EM 10X63	50	10.00	35.00	-	63.00	43.9	-	M24	2.83	0.00~	W ~	71EAD3871D313 ~	0.0~	63.00~	ZYL ~	10 ~	101.8~	4601547
DIN69871 50 EM 12X63	50	12.00	42.00	-	63.00	43.9	-	M24	2.93	0.00~	W ~	71EAD3871D313 ~	0.0~	63.00~	ZYL ~	10 ~	101.8~	4601548
DIN69871 50 EM 14X63	50	14.00	44.00	-	63.00	43.9	-	M24	2.91	0.00~	W ~	71EAD3871D313 ~	0.0~	63.00~	ZYL ~	10 ~	101.8~	4601549
DIN69871 50 EM 16X63	50	16.00	48.00	-	63.00	43.9	-	M24	3.02	0.00~	W ~	71EAD3871D313 ~	0.0~	63.00~	ZYL ~	10 ~	101.8~	4601550
DIN69871 50 EM 18X63	50	18.00	50.00	-	63.00	43.9	-	M24	3.08	0.00~	W ~	71EAD3871D313 ~	0.0~	63.00~	ZYL ~	10 ~	101.8~	4601551
DIN69871 50 EM 20X63	50	20.00	52.00	-	63.00	43.9	-	M24	3.07	0.00~	W ~	71EAD3871D313 ~	0.0~	63.00~	ZYL ~	10 ~	101.8~	4601552
DIN69871 50 EM 25X80	50	25.00	65.00	-	80.00	60.9	-	M24	3.70	0.00~	W ~	71EAD3871D313 ~	0.0~	80.00~	ZYL ~	10 ~	101.8~	4601553
DIN69871 50 EM 32X100	50	32.00	72.00	-	100.00	80.9	-	M24	4.44	0.00~	W ~	71EAD3871D313 ~	0.0~	100.00~	ZYL ~	10 ~	101.8~	4601554
DIN69871 50 EM 40X100	50	40.00	90.00	79.90	100.00	80.9	43.00	M24	5.05	0.00~	W ~	71EAD3871D313 ~	0.0~	100.00~	ZYL ~	10 ~	101.8~	4601555
DIN69871 50 EM 50X125	50	50.00	98.00	79.90	125.00	105.9	90.00	M24	6.80	0.00~	W ~	71EAD3871D313 ~	0.0~	125.00~	ZYL ~	10 ~	101.8~	4601556

Add B for coolant through flange except DIN69871 30
