DIN69871-ER : DIN 6499 ER collet chucks with DIN 69871 form ADB taper shanks


 IT_BALANCE_20000 RPM  IT_BALANCE GRADE  IT_RUN-OUT A0.003  IT_TAPER SHANK GRADE  IT_SURFACE HARDNESS 58~60HRC  IT_N5
Related holder for : ER25 SRK 8X60

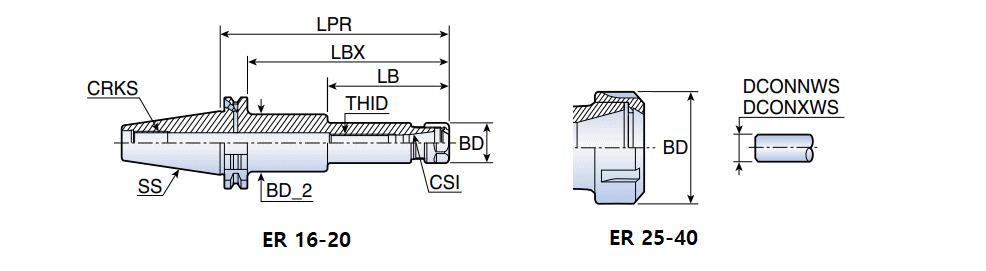

  DesignationSS CSI DCONNWS DCONXWS BD BD_2 LPR LBX LB CRKS THID S1 d d2 ClssID LTA CCTWS CCFWS LS GICATGIREMgiicGICODE
  DIN69871 40 ER 25X100 40 ER25 1.0016.0042.00-100.0080.9-M16 M16X2 25.00~1.46 1-16 ~0.00~71EAD3871D313 ~88.04~SZD ~02 ~68.4~4601304 0
  DIN69871 40 ER 25X150 40 ER25 1.0016.0042.00-150.00130.9-M16 M16X2 25.00~2.02 1-16 ~0.00~71EAD3871D313 ~138.04~SZD ~02 ~68.4~4601305 0
  DIN69871 40 ER 25X150B 40 ER25 1.0016.0042.00-150.00130.9-M16 M22X1.5 0.00~2.00 ~0.00~71EAD3871D313 ~138.04~SZD ~02 ~68.4~4601325 0
  DIN69871 40 ER 25X65 40 ER25 1.0016.0042.0032.4065.0045.928.00M16 M16X2 25.00~1.05 1-16 ~0.00~71EAD3871D313 ~53.04~SZD ~02 ~68.4~4601303 0
  DIN69871 50 ER 25X100   50 ER25 1.0016.0042.00-100.0080.9-M24 M16X2 25.00~3.33 1-16 ~0.00~71EAD3871D313 ~88.04~SZD ~02 ~101.8~4601311 Balance to G6.3 at 12,000RPM 0
  DIN69871 50 ER 25X100B 50 ER25 1.0013.0034.00-100.0080.9-M24 M12 0.00~3.33 ~0.00~71EAD3871D313 ~88.04~SZD ~02 ~101.8~4601331 0
  DIN69871 50 ER 25X150   50 ER25 1.0016.0042.0050.00150.00130.980.90M24 M16X2 25.00~4.02 1-16 ~0.00~71EAD3871D313 ~138.04~SZD ~02 ~101.8~4601312 Balance to G6.3 at 12,000RPM 0
  DIN69871 50 ER 25X150B 50 ER25 1.0016.0042.00500.00150.00130.980.90M24 M16X2 0.00~4.02 ~0.00~71EAD3871D313 ~138.04~SZD ~02 ~101.8~4601332 0
  DIN69871 50 ER 25X200   50 ER25 1.0016.0042.0055.00200.00180.985.00M24 M16X2 25.00~4.96 1-16 ~0.00~71EAD3871D313 ~188.04~SZD ~02 ~101.8~4601313 Balance to G6.3 at 12,000RPM 0
Add B for coolant through flange
