DIN69871-FM : DIN 6357 Face mill arbors with DIN 69871 form A/AD taper shanks


 IT_RUN-OUT A0.005A  IT_TAPER SHANK GRADE  IT_SURFACE HARDNESS 58~60HRC  IT_N5

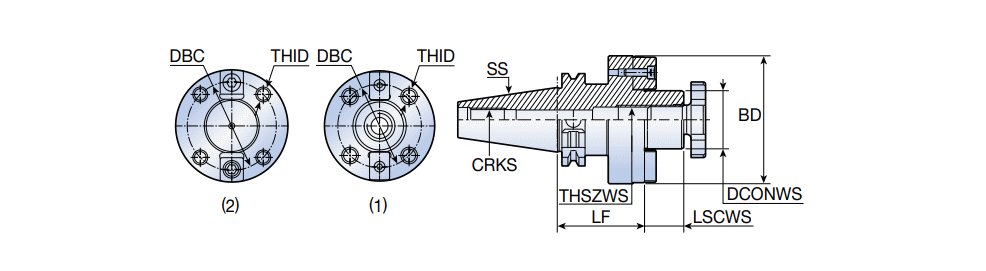

  DesignationSS DCONWS BD DBC LF LSCWS CRKS THID THSZWS WT Fig d2 ClssID LTA CCTWS CCFWS LS GICATGIREMgiicGICODE
  DIN69871 40 FM 40   40 40.0088.0066.7060.0027.00M16 M12 M20 2.251~0.00~71EAD3871D313 ~60.00~SRK ~02 ~68.4~4601808 Form AD 0
  DIN69871 50 FM 40   50 40.0088.0066.7070.0027.00M24 M12 M20 4.871~0.00~71EAD3871D313 ~70.00~SRK ~02 ~101.8~4601809 Form AD 0
  DIN69871 50 FM 60   60 60.00128.00101.6070.0040.00M24 M16 - 7.322~0.00~71EAD3871D313 ~70.00~SRK ~02 ~101.8~4601810 Form A 0
4 pcs of mounting screws are included
