DIN69871-ODP : T-FLEXTEC threaded adaptation tools with DIN69871 form ADB taper shanks

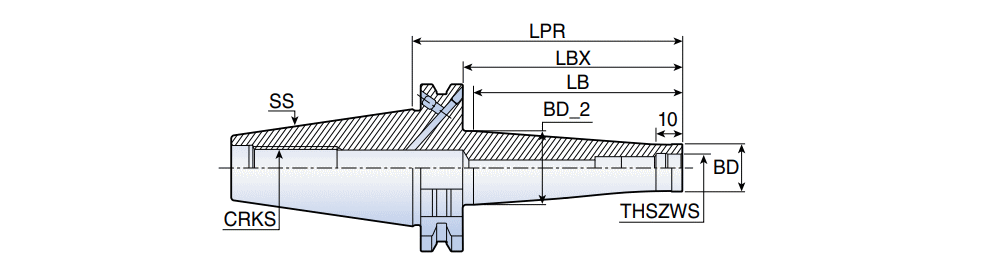

Designation	SS	THSZWS	BD	BD_2	LPR	LBX	LB	CRKS		S5	d2	ClssID	LTA	CCTWS	CCFWS	LS	GICAT	GIREM
DIN69871 40 ODP 6X58	40	M06	9.80	13.00	58.00	38.9	32.00	M16	0.82	6 ~	0.00~	71EAD3871D313 ~	58.00~	SAI ~	02 ~	68.4~	4651327
DIN69871 40 ODP 6X98	40	M06	9.80	23.00	98.00	78.9	74.00	M16	0.91	6 ~	0.00~	71EAD3871D313 ~	98.00~	SAI ~	02 ~	68.4~	4651328
DIN69871 40 ODP 8X58	40	M08	13.10	15.00	58.00	38.9	32.00	M16	0.82	8 ~	0.00~	71EAD3871D313 ~	58.00~	SAI ~	02 ~	68.4~	4651329
DIN69871 40 ODP 8X98	40	M08	13.10	23.00	98.00	78.9	74.00	M16	0.92	8 ~	0.00~	71EAD3871D313 ~	98.00~	SAI ~	02 ~	68.4~	4651330
DIN69871 40 ODP 10X58	40	M10	18.00	20.00	58.00	38.9	32.00	M16	0.84	10 ~	0.00~	71EAD3871D313 ~	58.00~	SAI ~	02 ~	68.4~	4651331
DIN69871 40 ODP 10X98	40	M10	18.00	28.00	98.00	78.9	74.00	M16	1.00	10 ~	0.00~	71EAD3871D313 ~	98.00~	SAI ~	02 ~	68.4~	4651332
DIN69871 40 ODP 12X58	40	M12	21.00	24.00	58.00	38.9	34.00	M16	0.88	12 ~	0.00~	71EAD3871D313 ~	58.00~	SAI ~	02 ~	68.4~	4651333
DIN69871 40 ODP 12X98	40	M12	21.00	31.00	98.00	78.9	75.00	M16	1.07	12 ~	0.00~	71EAD3871D313 ~	98.00~	SAI ~	02 ~	68.4~	4651334
DIN69871 40 ODP 16X58	40	M16	29.00	28.00	58.00	38.9	33.00	M16	0.91	16 ~	0.00~	71EAD3871D313 ~	58.00~	SAI ~	02 ~	68.4~	4651335
DIN69871 40 ODP 16X98	40	M16	29.00	34.00	98.00	78.9	75.00	M16	1.15	16 ~	0.00~	71EAD3871D313 ~	98.00~	SAI ~	02 ~	68.4~	4651336
DIN69871 50 ODP12X 78	50	M12	23.00	30.00	78.00	58.9	50.00	M24	2.74	12.00000 ~	0.00~	71EAD3871D313 ~	78.00~	SAI ~	02 ~	101.8~	4605098	Balance to G6.3 at 12,000RPM
DIN69871 50 ODP12X128	50	M12	23.00	40.00	128.00	108.9	100.00	M24	3.14	12.00000 ~	0.00~	71EAD3871D313 ~	128.00~	SAI ~	02 ~	101.8~	4605099	Balance to G6.3 at 12,000RPM
DIN69871 50 ODP12X178	50	M12	23.00	40.00	178.00	158.9	150.00	M24	3.56	12.00000 ~	0.00~	71EAD3871D313 ~	178.00~	SAI ~	02 ~	101.8~	4605100	Balance to G6.3 at 12,000RPM
DIN69871 50 ODP12X228	50	M12	23.00	46.00	228.00	208.9	200.00	M24	4.14	12.00000 ~	0.00~	71EAD3871D313 ~	228.00~	SAI ~	02 ~	101.8~	4605101	Balance to G6.3 at 12,000RPM
DIN69871 50 ODP16X 78	50	M16	29.00	34.00	78.00	58.9	50.00	M24	2.96	16.00000 ~	0.00~	71EAD3871D313 ~	78.00~	SAI ~	02 ~	101.8~	4605102	Balance to G6.3 at 12,000RPM
DIN69871 50 ODP16X128	50	M16	29.00	40.00	128.00	108.9	100.00	M24	3.20	16.00000 ~	0.00~	71EAD3871D313 ~	128.00~	SAI ~	02 ~	101.8~	4605103	Balance to G6.3 at 12,000RPM
DIN69871 50 ODP16X178	50	M16	29.00	55.00	178.00	158.9	150.00	M24	4.08	16.00000 ~	0.00~	71EAD3871D313 ~	178.00~	SAI ~	02 ~	101.8~	4605104	Balance to G6.3 at 12,000RPM
DIN69871 50 ODP16X228	50	M16	29.00	55.00	228.00	208.9	200.00	M24	4.64	16.00000 ~	0.00~	71EAD3871D313 ~	228.00~	SAI ~	02 ~	101.8~	4605105	Balance to G6.3 at 12,000RPM

If the B type option is required, the plug screw must be removed from the flange cooling hole (Use a 2mm hex key)
