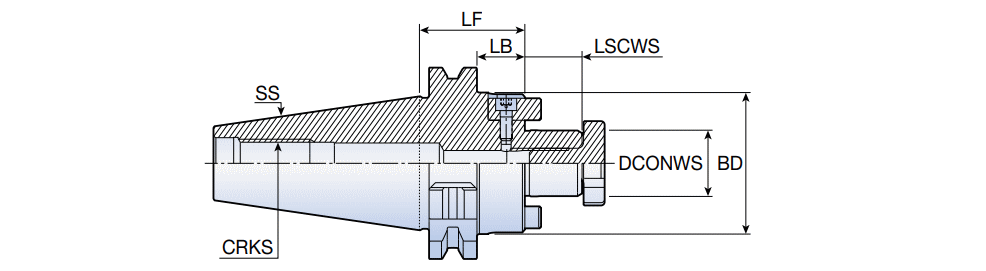

DIN69871-SEM : ISO 3937 Face mill arbors with DIN 69871 form AD taper shanks and coolant hole


 IT_RUN-OUT A0.005A  IT_TAPER SHANK GRADE  IT_SURFACE HARDNESS 58~60HRC  IT_N5
  DesignationSS DCONWS BD LF LB LSCWS CRKS d2 ClssID LTA CCTWS CCFWS LS GICATGIREMgiicGICODE
  DIN69871 30 SEM 16X35 30 16.0038.0035.0015.917.00M12 0.520.00~71EAD3871D313 ~35.00~FDA ~02 ~47.8~4601661 0
  DIN69871 30 SEM 22X50 30 22.0047.0050.0030.919.00M12 0.800.00~71EAD3871D313 ~50.00~FDA ~02 ~47.8~4601662 0
  DIN69871 30 SEM 27X50 30 27.0058.0050.0030.921.00M12 0.920.00~71EAD3871D313 ~50.00~FDA ~02 ~47.8~4601663 0
  DIN69871 40 SEM 16X35 40 16.0038.0035.0015.917.00M16 0.920.00~71EAD3871D313 ~35.00~FDA ~02 ~68.4~4601664 0
  DIN69871 40 SEM 22X35 40 22.0047.0035.0015.919.00M16 1.020.00~71EAD3871D313 ~35.00~FDA ~02 ~68.4~4601665 0
  DIN69871 40 SEM 27X60 40 27.0058.0060.0040.921.00M16 1.600.00~71EAD3871D313 ~60.00~FDA ~02 ~68.4~4601666 0
  DIN69871 40 SEM 32X60 40 32.0066.0060.0040.924.00M16 1.780.00~71EAD3871D313 ~60.00~FDA ~02 ~68.4~4601667 0
  DIN69871 40 SEM 40X60 40 40.0082.0060.0040.927.00M16 2.160.00~71EAD3871D313 ~60.00~FDA ~02 ~68.4~4601668 0
  DIN69871 50 SEM 16X35 50 16.0038.0035.0015.917.00M24 2.700.00~71EAD3871D313 ~35.00~FDA ~02 ~101.8~4601669 0
  DIN69871 50 SEM 22X35 50 22.0047.0035.0015.919.00M24 2.800.00~71EAD3871D313 ~35.00~FDA ~02 ~101.8~4601670 0
  DIN69871 50 SEM 22X50X200 50 22.0050.00200.00180.919.00M24 5.210.00~71EAD3871D313 ~200.00~FDA ~02 ~101.8~4603584 0
  DIN69871 50 SEM 27X35 50 27.0058.0035.0015.921.00M24 2.940.00~71EAD3871D313 ~35.00~FDA ~02 ~101.8~4601671 0
  DIN69871 50 SEM 32X35 50 32.0066.0035.0015.924.00M24 3.160.00~71EAD3871D313 ~35.00~FDA ~02 ~101.8~4601672 0
  DIN69871 50 SEM 32X78X370 50 32.0078.00370.00350.924.00M24 15.780.00~71EAD3871D313 ~370.00~FDA ~02 ~101.8~4603585 0
  DIN69871 50 SEM 40X50 50 40.0082.0050.0030.927.00M24 3.810.00~71EAD3871D313 ~50.00~FDA ~02 ~101.8~4601673 0
  DIN69871 50 SEM 50X60 50 50.0095.0060.0040.930.00M24 4.850.00~71EAD3871D313 ~60.00~FDA ~02 ~101.8~4601674 0
Wrench not included
